Hydra-Tech - Model HT400DJV -Mobile Hydraulic Power Unit
FromHydra-Tech Pumps

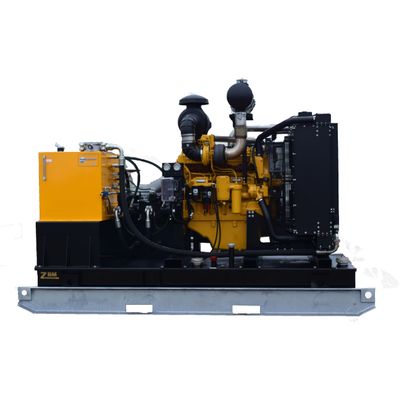

This 400 horsepower hydraulic power unit features a John Deere diesel engine, pressure compensated piston hydraulic pump, engine mounted hydraulic oil cooler and built-in fuel tank. It is designed to power our larger submersible pumps such as the S30M and other hydraulic equipment requiring flows up to 150 GPM and pressures to 4000 PSI.
Most popular related searches
- Weight: 6,240 lbs (2,830 Kg)
- Hydraulic Oil: SAE 10W or 20W (ISO 32 or 46) Type AW
- Engine: John Deere 6135HF485 Diesel
- Horse Power: 400 @ 2300 RPM
- Hydraulic Output: Variable, Max. 150 GPM (568 LPM)
- Hose Port Size: 2 circuits, 1 -1/2" on Pressure and Return
- Oil Filtration: 10 Micron (Standard)
- Oil Reservoir Capacity: 160 U.S. Gallons (605 Liters)
- Fuel Tank Capacity: 150 U.S. Gallons (568 Liters)
- Fuel Consumption: Approx. 18 U.S. Gal/Hr (68 Liters/Hr)
- Skid Frame Chassis with Built-in Fuel Tank, Forklift Pockets and Lifting Bracket
- Dependable John Deere Diesel
- Digital Electronic Engine Controls
- Variable Piston Hydraulic Pump
- Efficient Hydraulic Oil Cooler
- Return Filter with Service Indicator
- Variable Volume and Pressure Controls
- Tank Top Filler/ Strainer
- System Relief Valve
- Pressure Control Valve
- Liquid Filled Pressure Gauge
- Fluid Level/ Temperature Gauge
- Highway Trailer
- Multiple Hydraulic Circuits
- Other Flow and Pressure Combinations
