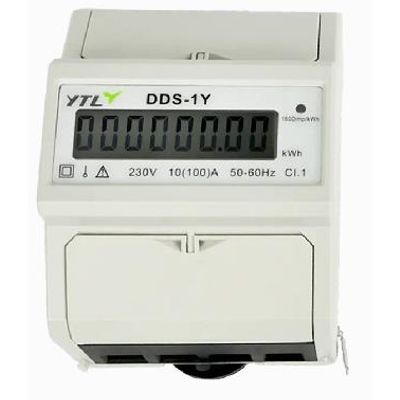

YTL - Model RS485 -D119014 - Modbus Protocl Active Single Phase AC Grid Meter

Its performance standard conforms to IEC 62052-11, IEC 62053-21 international standards of the class 1 single-phase active energy meter related technical requirements, can directly and accurately measure the rated frequency of 50Hz-60Hz single-phase AC grid in the load of active energy consumption.

It is characterized by good reliability, small size, light weight, beautiful appearance and easy installation.

• Voltage: 230V
• Current: 10(100)A
• Accuracy class:  Active0.5，Reactive 1.0
• Standard: EN50470-1/3
• Frequency: 50Hz
• Impulse constant: 1600imp/kWh
• Display: LCD5+1
• Power consumption: ≤8VA ≤0.4W
• Starting current: 0.002Ib
• Temperature range: -10～45℃
• Flashing red: Impulse indication，width=80ms
• Average humidity value of year: 75%
• Maximal humidity value: 95%

• Pulse indication
• LCD screen display

Material

• Case: Gray flame retardant ABS
• Side cover：Gray flame retardant ABS
• Bottom Shell：Gray flame retardant ABS
• Hook: ABS

• Height 100 mm
• Width 76 mm
• Depth 65 mm
• Weight 0.31 kg（N.W.）

• Powering up the metering device by properly connecting it to a computer or a communicable device according to the wiring diagram.
• Initial address of the metering device to 1.
• Broadcast address of 0.
• Software Please use the debugging software provided by our company.
• When writing operation, you must first press and hold the SET (set) button. (SET button is 9 in the wiring diagram above, press and hold it with a hard object when setting the meter address and power level.)
