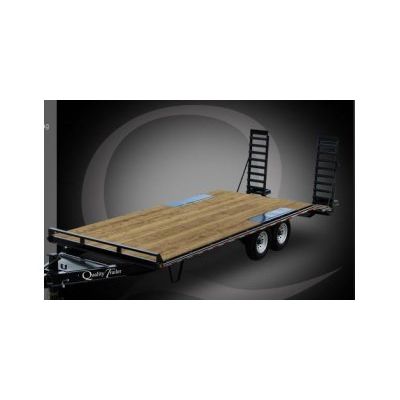

Model 10000 GVWR -General Duty Pintle Deckover Trailer

GVWR 10000 lb. – Capacity 8500 lb. with 1500 lb. Hitchload

• Treated wood deck
• 96″ wood deck 101.5″ to outside of rubrails
• 5200 lb. braking axles with 4 wheel brakes
• Double eye spring suspension
• 225/75 D15 load range D 8 ply rating BIAS tires
• 8” L-beam frame (W8x10)
• 4″ side rails
• 3″ channel cross members – 24″ spacing
• Cold form continuous tongue (no notching or heating) with tool tray
• 5 ft. swing-up ramps with support foot
• 2 5/16″ adjustable coupler or pintle ring (same price for either)
• 12000 lb. drop-foot jack
• Metal plate over wheels for lowest possible loaded deck height (30″)
• Stake pockets and rubrail
• Self charging break away kit, safety chains, skip DOT reflective tape and all rubber mounted sealed beam lighting with conventional wiring with gel filled connectors
• Primed, 2 coats of automotive grade enamel, pin stripe

• 20 ft. (16’+4′ dove tail)
• Only length available
