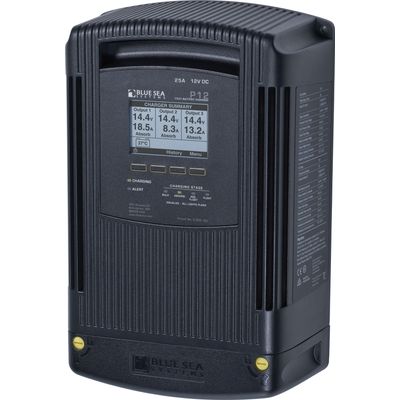

Model 12V DC 25A - P12 Battery Charger
From Power Conversion - Battery Chargers
Four stage, three output, dry mount design, for use in harsh environments: Rugged, finned aluminum case, PreFloat™ stage prevents over charging, Power factor corrected for efficient use of AC, Intuitive diagnostic screens, User defined charge profiles and customizable settings, Provides charging for up to three battery banks, Large, bright display, Multi-language: English, French, German, Italian, Spanish, Charge Coordination with Blue Sea Systems Automatic Charging Relays (ACR) controls ACR state ensuring proper float stage for each battery, Battery Temperature Compensation - adjusts charge voltage based on battery temperature, AC over and under voltage shut down and automatic restart, Over and under battery temperature protection - charger will not operate if battery temperature rises above or falls below a set value, DC over voltage and reverse polarity protection, Surge and short circuit protection
-
Most popular related searches
Specifications
Total Output Current | 25A |
Input AC Current | 4.5A @ 100V AC 2.25A @ 200V AC |
Maximum Output Voltage | 16V DC |
Nominal Voltage | 12V DC |
Ignition Protected | Yes |
Number of Outputs | 1 negative 3 positive |
Stud Size | M6 |
Universal AC Input Voltage | 115-230V AC |
AC Input Frequency | 45-65Hz |
Output Voltage Accuracy | 0.05V |
Typical Float Voltage | 13.5V DC |
Minimum Operating Temperature | -20° C |
Maximum Operating Temperature | 70° C |
Minimum Storage Temperature | -30° C |
Maximum Storage Temperature | 80° C |
Battery Types | AGM Flooded Lead Acid Gel TPPL (Thin Plate Pure Lead) |
Recommended for Battery Bank Sizes | 330Ah Maximum 60Ah Minimum |
Screw Terminal Torque | 10 in-lb (1.13 Nm) M3 15 in-lb (1.69 Nm) M4 |
Stud Torque | 80 in-lb (9.04 Nm) |
Height | 13.03in (330.96 mm) |
Width | 8.46in (214.88 mm) |
Depth | 3.66in (92.96 mm) |
Warranty | 5 Year |
Weight | 12.00lb (5.44 kg) |
