Genvolt Ltd.

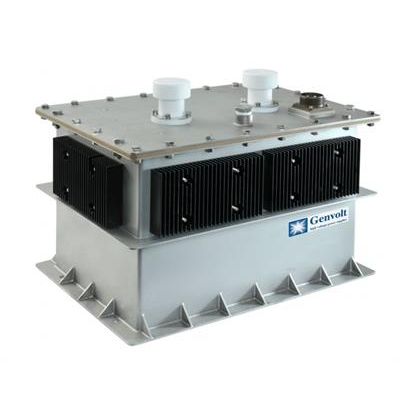

Model 20kW -High Voltage Transformer Rectifier
FromGenvolt Ltd.
20kW High Voltage Transformer Rectifier outputting 10-50 kilovolts. Direct Current - 20 kilowatt.
Most popular related searches
high voltage transformer rectifier
high voltage transformer
high voltage rectifier
rectifier transformer
voltage rectifier
load current
high voltage output
- Power rating 20kW
- Frequency of operation 20kHz
- Output voltage 33kVDC on full load
- Average current 600mA max.
- Input voltage 450V peak to peak
- Primary current Quasi sine wave (zero voltage switching)
- Leakage inductance <25uH
- Pulse load current 20A max.
- Primary average current 60A max.
- Primary pulse current 160A max.
- Dimensions 365W x 525D x 407H
- Material Stainless steel
- Weight 80kg max.
- High temperature operation +55°C
- High temperature storage +70°C
- Low temperature operation -20°C
- Low temperature storage -30°C
- Relative humidity test 95% RH at 40°C Non-condensing
