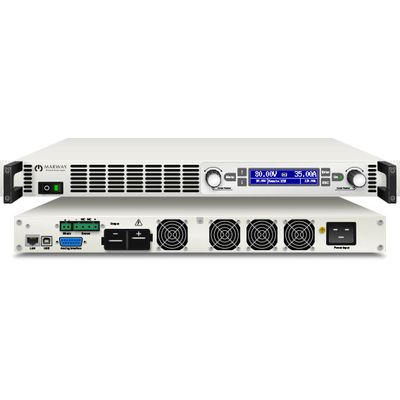

Model 300 Series -Dc Power Supply Line Packs

The 300 Series dc power supply line packs a lot of advanced features into a small package. 1.5 kW • 300 Series 1U: Five models from 750 Vdc/6 A to 80 Vdc/50 A. 3.0 kW • 300 Series 1U: Five models from 750 Vdc/12 A to 80 Vdc/100 A. Active power factor correction of input power. Auto-ranging power output. Output Share Bus regulates voltage and current load for up to 10 parallel connected units. Output Voltage Sense Bus adjusts for voltage drops at the DUT up to 5% of the system’s rated dc voltage. Discharge circuit on models of 200 Vdc and higher. USB, Ethernet, and analog remote control interfaces. Graphical display user interface with multiple controls allows for complete configuration, control, and monitoring from the control panel. Controls lockout to prevent accidental changes.
