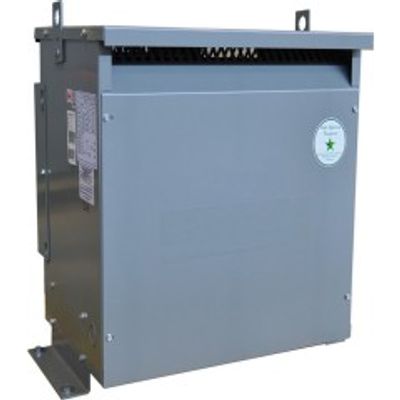

Model 300C80E6/E3R -300 Amps 600 Volt Single phase Line Reactor
Single phase Line Reactor 300C80E6/E3R1 introduces specific amount of inductive reactance (impedance) into a circuit. This inserted impedance reduces line harmonics, moderate line transients, holds down spikes of current, limit peak current, absorb power line disturbances which could damage inverters, variable speed controllers or other voltage sensitive equipment.
Most popular related searches
- Catalog No. : 300C80E6/E3R
- Product Type : Line Reactor
- Phase : Single
- Maximum Current : 300 Amps
- Voltage range : 600 Volt
- Reactor Power Rate : No
- Frequency, Hz : 60
- Inductance, mH : 0.08
- Impedance : No
- Current over load capability : 150% for 1 min
- Saturation Level : 250% of rated current (50% rated inductance minimum at 350% rated current).
- Vector Group : II
- Winding Conductor : Copper
- Temperature Rise, °C : 115
- Insulation Class : 180 (H)
- Insulation Level, (B.I.L), kVA : 4
- Sound Level, dB : 65
- Standards, Certifications, Compliances: : CSA Standard C22.2. No.47 Air Cooled Transformers (Dry Type)., CSA certified. File No. LR34493
- UL Listed. File No.E108255., Meets NEMA ST-20, Seismic Qualified SDS=1.60g 2/h=1.0 OSHPD OSP-0109-10.
- cUL Listed.
- Enclosure Type : Nema 3R. Outdoor ventilated Weather resistant steel enclosure (IP14). FINISH - Polyester powder coat.
- Dimensions : 17" x 18" x 14"
- Weight, Lbs : 60.0
- Country of Manufacture : Canada
