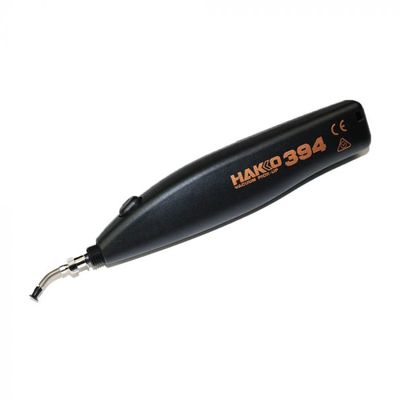

Model 394 -Vacuum Pick-up Tool
The suction power on the Hakko 394 Vacuum Pick-up Tool provides smooth, even suction to hold a part in place while you line it up the exact placement and the perfect pick-up tool for surface mount components.
Most popular related searches
Easy-to-use, battery operated pick-up tool for surface mount components.
- uses 2 AAA batteries
- ideal for handling surface mount components
Model Name: 394
Part No.: 394-01
Power Supply: AAA alkaline battery x2
Outer Dimensions: 130(L) x 22(W) x 29(H) mm
Weight w/o batteries: 43 g
Service Life of Battery
Pick-up Repetition Limit: ~30,000 pick-ups (with alkaline batteries)
A 26 mm x 26 mm QFP is picked up for 2 seconds using a 10 mm diameter pad and then released for 1 second. This cycle is repeated continuously until the QFP is no longer picked up.
Continuous Pick-up Time: ~15 hours
This is the time period from the moment a 26 mm x 26 mm QFP is picked up using a 10 mm diameter pad to the moment the QFP drops.
