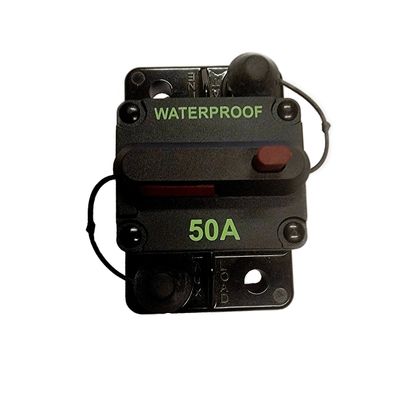

Model 509416 -Manual Reset Circuit Breaker

"Pre-order Shipping in November" The Manual reset Circuit Breaker is 12/24 volt Type 1 and complies with SAE standard J1625.

Most popular related searches

Parts per unit: 1
Features: Applications: typically used in auxiliary and accessory circuits-trucks, buses, RVS and marine applications, housing: thermoset plastic; UL rated 94vo; +320°f (+155° c). Stud insulators are provided on covered units with type f (surface mount) bases, mounting: panel or surface, testing: complies with sae j1625
Temperature range (°c): -32°c to 92°c
Mount hole size: 1/4 in
Maximum voltage: 42vdc
Housing material: Thermoset plastic
Amps: 50 a
Subject to prop 65: No
Pack type: Bag
Waterproof: Yes
Voltage: 12 v, 24 v
UL / CSA: No
Termination material: Metal
Sae: J1625
Application: Typically used in auxiliary and accessory circuits-trucks, buses, rvs and marine applications
ROHS compliant: Yes
Product width: 1.94 in
Product length: 2.94 in
Post size: 1/4 in
Color: Black
Brand: Not branded
Body material: Plastic
SKU: 509416, 509416-001
Temperature range (°f): -25°f to 198°f
Country of origin: Taiwan

Technical Specification
