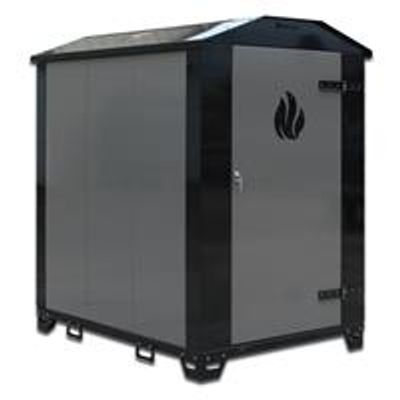

Model 6150 OD -Outdoor Residential Wood Boiler
The Royall 6150 OD Outdoor residential wood boiler is ready to provide maximum heating for your home. Our residential outdoor boiler can heat your home to any temperature for a fraction of what you are paying now. Our wood boilers connect easily to your existing conventional air system giving you years of low cost, trouble free service. Start saving money on your residential heating bill today! These heating capacity specifications are provided as guidelines only and in no way guarantee the output or capacity of the units. The actual BTU output depends on the type of fuel being burned and its condition, the thermostat setting, the draft adjustments and the chimney into which the unit is installed.
Draft Options:
- (1) 50 cfm Forced Draft Fan
Grate System:
- (1) Cast Iron Front Frame
- (1) Cast Iron Rear Frame
- (4) Rocker Grates
Boiler Construction:
- 1/4" and 5/16" SA Boiler Plate,
- High Temperature Powder Coating
Boiler Dimensions:
- Boiler - 51" x 26" x 38.5" (HxWxD)
- Shelter - 77.5" x 47" x 60" (HxWxD)
Water Capacity:
- 30 Gallons
Firebox Capacity:
- 8.1 Cu Ft
Max Log Length:
- 26"
Fuel Loading Door:
- Cast Iron 10" x 14"
Ash Removal Door:
- Cast Iron 5" x 7"
Firebrick Requirements:
- (12) 9" x 4.5" x 1.25"
- (2) 2.5" x 2.25" x 1.25"
Gasket Rope Requirements:
- (Fuel Door) 6`, 7/8" Rope
- (Ash Door) 3.5`, 5/8" Rope
Boiler Flue Size:
- 6"
Boiler Flue to Ground:
- 48.5" to Center
Supply and Return:
- 1-1/4" FNPT Connections
Approximate Weight:
- 2,054 lbs
* Boiler Shroud Sold Seperately *
