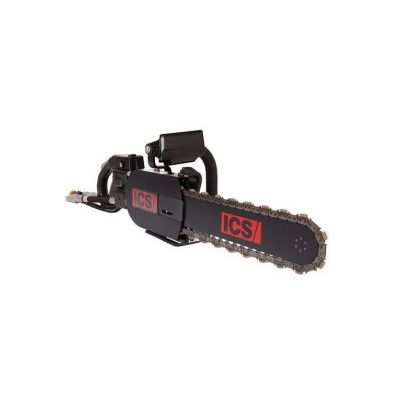

Model 890F4 - Flush Cut Hydraulic Powered Concrete Chain Saw
From Hydraulic Powered Chain Saws
The ICS 890 Series hydraulic cutting system offers the superior strength of FORCE4® technology. From the redesigned, more durable rear handle, to the easy to replace drive sprocket, this saw is engineered to stand up to your toughest jobs. In a package that exceeds industry standards this sleek powerhouse is packed with features designed to make it work as hard as you do.
-
Most popular related searches
Features & Benefits
- Cuts within 4 mm of wall
- Redesigned rear handle offers improved ergonomic cutting and greater durability
- 3 scratch resistant bubble levels for more accurate vertical and horizontal cutting
- New drive sprocket design allows for quick replacement in the field
- Universal motor across 890 series saw platforms and compatible with ICS 880 series saw
- Available with 30 cm and 2.5 m hoses, 1 cm quick disconnects included for convenience
- New secondary water shut off valve for flow metering and water conservation
Technical Specifications
8 GPM (30 LPM)
- Weight 27.3 lbs (12.4 kg) with 15-inch (38 cm) bar and chain
- Bar Length Up to 25 inches (63 cm)
- Motor Speed 6100 rpm
- Powerhead Dimensions 23 inches (58.5 cm) length; 10.5 inches (26.5 cm) height; 9.5 inches (24 cm) width
- Torque 122 in-lbs
- Horesepower 11.5 hp
- Hydraulic Supply 8 gpm (30 lpm), 2500 psi (172.5 bar)
- Noise Level 107 dB @ 3 ft (1 m)
- Vibration Level 2 meters/second2 (front handle); 6 meters/second 2 (rear handle)
- Water Supply Minimum 20 psi (1.5 bar)
12 GPM (45 LPM)
- Weight 27.3 lbs (12.4 kg) with 15-inch (38 cm) bar/chain and 1’ (.3 m) hose whips
- Bar Length Up to 25 in (63 cm)
- Motor Speed 6500 rpm
- Powerhead Dimensions 23 in (58.5 cm) length; 10.5 in (26.5 cm) height; 9.5 in (24 cm) width
- Torque 170 in-lbs (19.2 Nm)
- Horesepower 17.5 hp (13 kW)
- Hydraulic Supply 12 gpm (45 lpm), 2500 psi (172.5 bar)
- Noise Level 98 dB @ 3 ft (1 m) (Sound pressure level); 107 dB @ 3ft (1 m) (Sound power level)
- Vibration Level 2.0 m/second2 (front handle); 6.0 m/second2 (rear handle)
- Water Supply Minimum 20 psi (1.5 bar)
