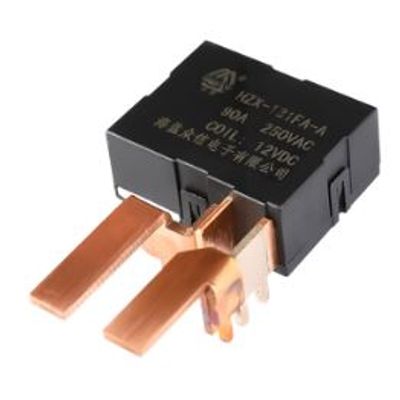

Model 90A - 9mm Creepage Distance Magnetic Latching Relay
90A switching capability. Very minimal power consumption from the coil. 9mm creepage distance. 4KV dielectrics strength coil to contact. In accordance with IEC62055-31:UC2. Outline dimensions:(36*30*16.5)mm. CE,CQC compliant. RoHS,UL compliant.
-
Most popular related searches
Characteristics
- Insulation resistance 1,000MΩ(at 500VDC)
- Dielectric strength
- Coil to contact 4,000VAC 1 min
- Across open contact 1,800VAC 1 min
- Operate time Max.20ms
- Release time Max.20ms
- Shoock resistance functional 100m/s²(10g)
- Shoock resistance destructive 1000m/s²(100g)
- Ambient temperature -40 ~ 70℃
- Humidity 98%RH,+40℃
- Vibration resistance 10-55HZ,1.5mm(DA)
- Termination PCB
- Unit weight 40g
- Construction Dust protected
Application
- Mainly used for IC-card-prepayment based electric energy meters,Model 485 meters with the break & make function used in centralized meter reading system;
- It might also be used for combination switches of electiric power factor compensationswitch-capacitor,home appliances and automatic control devices;
Note:when requiring other nominal voltage,special order allowed.
