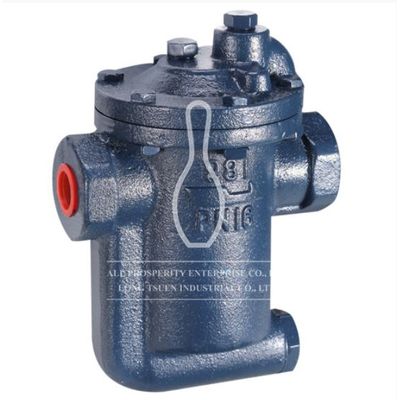

Model 980A -Inverted Bucket Air Trap

SHARE
The 980A Series Inverted Bucket Air Trap is designed for efficient condensation discharge and is constructed from robust cast iron, making it suitable for a variety of industrial applications. Available in sizes ranging from 1/2” to 2” for screwed ends (DN15 to DN50) and 1/2” to 3” for flanged ends (DN15 to DN80), it offers flexibility in connection types, including NPT, BSPT, and various flanged end standards like PN, JIS, and ANSI. The trap operates at a maximum pressure of 17 KGS and under normal temperature conditions. The design adheres to high manufacturing standards, evidenced by its ISO 9001:2008 certification and other relevant patents and licenses. Engineers will appreciate its reliable condensate discharge capacity and easy integration into existing systems, ensuring optimal performance and longevity.
Most popular related searches
inverter

Specification
Size (Screwed End): 1/2" - 2" (DN15 - DN50)
Size (Flanged End): 1/2" - 3" (DN15 - DN80)

Connection End
NPT and BSPT Screwed End
PN/JIS/ANSI Flanged End

Maximum Operating Pressure: 17 KGS
Working Temperature: Normal Temperature
