Model Arcturus -Decarbonize Industrial Steam
The Skyven Arcturus line of industrial steam-generating heat pumps captures low temperature heat rejected from industrial processes, increases the temperature of that heat (as high as 420°F), and uses it to generate steam at the same temperature, pressure, and quality of existing boilers. Existing boilers remain in place as backup to provide system redundancy. By decreasing, or even eliminating, the workload of existing boilers, Skyven Arcturus reduces your natural gas usage, significantly lowering on-site CO2 emissions from industrial steam.
A cost-effective solution to decarbonizing industrial steam.
Best Economics
Leverages high efficiencies (COP) to outperform traditional boilers
Highest Temperature Lift
Upgrades low temperature heat to as high as 420°F (215°C) with a max lift of 330°F (166°C)
Replicable
Standardized design and integration for replication across your facilities.
- Seamless Installation: Independent of existing production processes.
- Zero Downtime: Construction done while plant is operating. Connections made during scheduled maintenance.
- Standardized Integration: Connects to steam headers and waste heat sources.
- Increased Efficiency: 3x more efficient than standard natural gas boilers.
- High COP: Achieves higher COP and higher temperature lift than any other heat pump on the market.
- Water Refrigerant: Inexpensive, non-toxic, 0 Global Warming Potential (GWP).
Generate high-quality, emissions-free industrial steam that’s cost-competitive today.

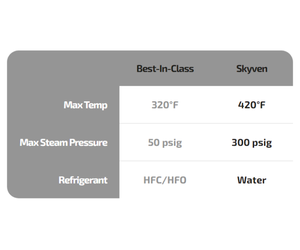

Skyven Arcturus achieves a higher COP and a higher temperature lift than any other heat pump on the market.
COP is an expression of efficiency and varies as a function of heat source temperature, steam output pressure, and temperature lift. Arcturus achieves COPs ranging from 2.1 to more than 8.0 depending on temperature lift.
The chart below shows Arcturus COP’s at various heat source temperatures with common steam output pressures and temperatures.
