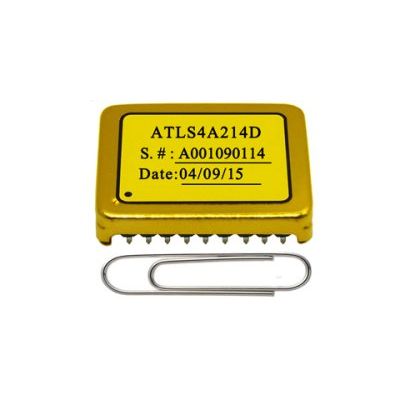

Model ATLS4A214 - High Voltage Constant Current 4A Laser Driver
From Laser Controllers/Drivers
This laser driver,ATLS4A214, is an electronic module that has all the valuable and important, but often difficult to achieve simultaneously, features simultaneously: wide input and output voltage range, high output current capability, high efficiency, low output noise (but it has an output 4mVpp ripple voltage at 500kHZ), wide modulation bandwidth, and small size.
-
Most popular related searches
Features
- Power Supply Voltage VPS Range: 5V~16V
- Full Swing Output Voltage: 0V to VPS (input voltage)
- Maximum Output Current: 4A
- High Efficiency: 92% - no heat sink is needed(IOUT=4A@LDA=10V&VPS=15V)
- Wide Modulation Bandwidth: DC~10kHZDual Independent Current Set Ports
- Direct Digital Modulation Control
- Three Control States: Shutdown, Standby and Operation
- Very Low Output Current Noise: < 12μA@0.1Hz~10Hz
- High Current Stability: < ±600μA@4A &-20°C~80°C
- Low Output Ripple Voltage: < 4mV@500kHZ
- Fully Shielded
- Both DIP and SMT Packages Available
- Compact Size: 27.4×21×5.7 (mm)
- 100 % Lead (Pb)-free and RoHS Compliant
