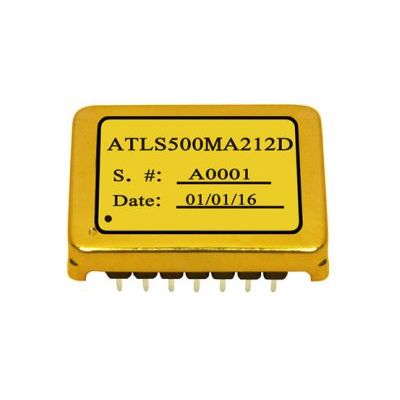

Model ATLS500MA212 - 14V 500MA Laser Driver
From Laser Controllers/Drivers
This laser driver, ATLS500MA212, is an electronic module that has all the valuable and important, but often difficult to achieve simultaneously, features simultaneously: wide input and output voltage range, high output current capability, high efficiency, low output noise (but it has an output 4mVp-p ripple voltage at 500kHZ), wide modulation bandwidth, and small size. The wide output voltage range, 0 ~ 15V, allows driving one or multiple serial laser diodes at the same time, for up to 500mA well controlled current at high efficiency. The extremely low noise between DC ~ 10kHZ and low DC current drift make it ideal for driving diode pumped single mode laser diodes to achieve mode-hop-free and narrow optical wavelength drift, thus, long coherent length.
-
Most popular related searches
Applications
ATLS500MA212D can be used to drive one or multiple laser diodes for DPSSL, EDFA, and fiber lasers with low noise and high efficiency.
Features
- Power Supply Voltage VPS Range: 4.5V ~ 16V
- Full Swing Output Voltage: 0.8V to VPS (input voltage)
- Maximum Output Current: 500mA
- High Efficiency: ≥80% - no heat sink is needed (Iout=1A@LDA=10V & VPS=15V)
- Wide Modulation Bandwidth: DC ~ 10kHZ
- Dual Independent Current Set Ports
- Direct Digital Modulation Control
- Three Control States: Shutdown, Standby and Operation
- Very Low Output Current Noise: < 12µA@0.1Hz ~ 10Hz
- High Current Stability: < ±200µA@1A & −20°C ~ 80°C
- Low Output Ripple Voltage: < 4mV@500kHZ
