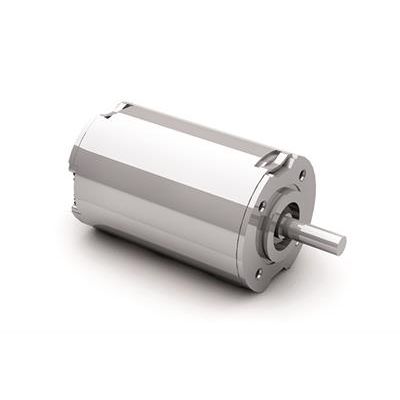

Model BG 42X15, 12V -Brushless DC Motor for External Controller
Highly dynamic 3-phase EC motor with 8-pole neodymium magnet; Version with Hall sensors for rotor position detection; Available in 2 motor lengths; Standard with lead version; On request, this motor can be manufactured in different voltage versions.
Most popular related searches
Nominal voltage: 12 V
Nominal current: 4.4 A
Nominal torque: 10.6 Ncm
Nominal speed: 3410 rpm
Friction torque at no load: 1.1 Ncm
Peak stall torque: 60.2 Ncm
No load speed: 4340 rpm
Maximum output power: 67.3 W
Nominal power: 38 W
Torque constant: 2.8 Ncm/A
Terminal resistance: 0.28 Ohm
Terminal inductance: 0.19 mH
Rotor inertia: 24 gcm^2
Weight: 0.36 kg
