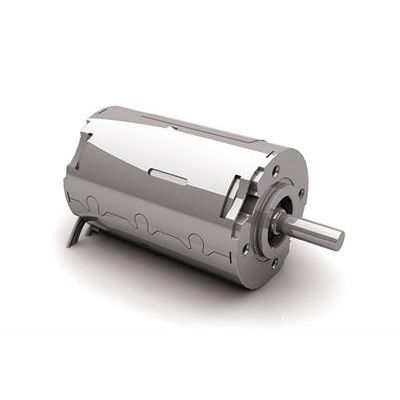

Model BG 42X15 KI, 12V -Brushless DC Motor for Integrated Controller

SHARE

Highly dynamic 3-phase BLDC motor with neodymium magnet , Version with integral commutation electronics , Selectable rotational direction , The speed of rotation of the motor is unregulated, as with conventional DC motor; it depends solely on the supply voltage and the load , Can be combined with encoders, brakes and gearboxes within our modular system

Most popular related searches

Nominal voltage: 12 V
Nominal current: 4.2 A
Nominal torque: 10.1 Ncm
Nominal speed: 3610 rpm
Friction torque at no load: 2.1 Ncm
Maximum torque: 28.8 Ncm
No load speed: 4300 rpm
Maximum output power: 65 W
Nominal power: 38 W
Torque constant: 2.8 Ncm/A
Rotor inertia: 24 gcm^2
Weight: 0.36 kg
