Brandenburger Liner GmbH & Co. KG
Model BRA-GLA 3 - Brandenburger Thermal Insulation
BRA-GLA 3 was developed especially for the wide range of requirements in the manufacturing of tools and dies, and consists of a combination of high-quality thermoset resin and fine glass fibres.
Most popular related searches
Special material characteristics
- Very high dimensional stability
- Good insulation properties
- Very high compressive strength
- Coefficient of expansion similar to that of steel
Areas of application:

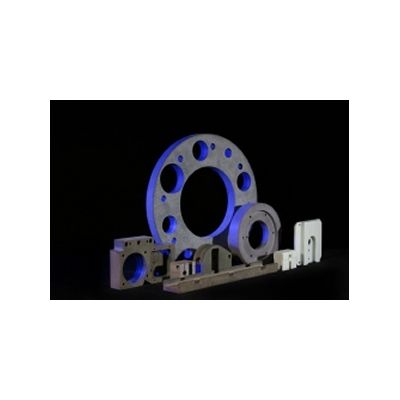

BRA-GLA 3 is mainly used as heat protection for injection moulding machines, as well as on presses, as piston and frame insulation.
With its high e-module, low mass dissipation when exposed to thermal stress for long periods, and expansion properties similar to that of steel, BRA-GLA® 3 is suitable for many machine engineering applications, e.g. blow-moulding machines, as well as packaging and extrusion systems.
Its very high dielectric resistance makes it also suitable for switch cabinet and apparatus engineering.
