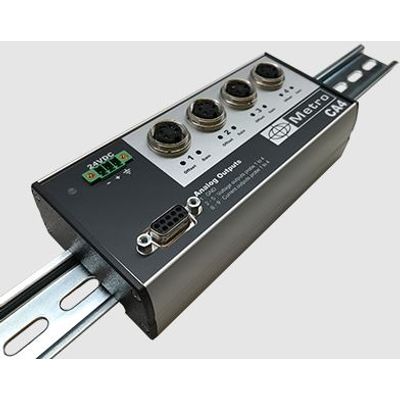

Model CA1 or CA4 -LVDT/HBT Multiplexer With Analog Outputs
The CA1 or CA4 is a compact conditioner module for half bridge (HBT) or LVDT probes. It is powered from the mains 24VDC. The zero and gain setting makes it compatible with most of the market`s probes.
The CA1 or CA4 is a compact conditioner module for half bridge (HBT) or LVDT probes. It is powered from the mains 24VDC
The zero and gain setting makes it compatible with most of the market's probes.
It is fitted with 1 or 4 analogue outputs from 0 to ±10 VDC and 0 to ±20 mA.
By mixing the zero and the gain (from 0 to 100%) and the full scale, it is possible to get a current output of 4-20mA or a voltage output from 0 to + 5VDC or 0 to + 10VDC
- 1 or 4 independant channels
- Current or voltage output
- Inductive HBT or LVDT probe
- Robust
- DIN connectors
- 24VDC power supply
Dimensions (mm): 126 x 110 x 53
Mass: 300 g
Power supply: 24 VDC
Consumption: 2 VA
Operating temperature: 0 à 40 °C
Storage temperature: -20 à + 85°C
Connection: DIN connectors (5 PINs) and screw terminal
Energising frequency: 11.7 kHz
Energising voltage: 4 Vpp
Output voltage: ± 5 VDC FS (500 Ohms minimum load) ± 10 VDC FS (1 kOhms minimum load)
Output current: ± 20 mA FS (150 Ohms maximum load only with ±5 Vcc)
Oscillator protection: Protected against openings and short circuits.
Output filter: 500 Hz bypass (-3dB)
Type of probe: Half bridge (HBT) (2 kOhms load) and LVDT
Probe's sensitivity: Adjusted for Half bridge, adjustable between 45 to 450 mV/V
