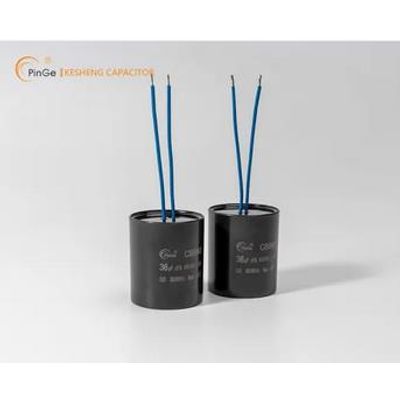

Model CBB61 -Fan Capacitor
Metallized polypropylene (MPP) film capacitor. 2-4 windings module. Multi-structure for mounting. Special engineering process for stable performance. The solution to high price and noisy sensor regulator. Categories: AC Motor Capacitors, CBB61, self healing capacitor, fan capacitors.
Most popular related searches
CBB61 Motor run and start AC capacitors.
- It is mainly suitable for starting and running the AC motors such as electric fan, ceiling fan, ect.
- Rated voltage: 250~450 VAC (50/60Hz)
- Capacitance range: 1~15uF
- Capacitance tol.: ± 5 %
- Reference standards: GB/T3667.1, UL810, EN60252-1
- Rated voltage UN: 250-500 VAC
- Rated capacitance CR: 1~60uF
- Capacitance tolerance: ±5%
- Operating temperature: -25/70°C; -40/70°C; -40/85°C; -40/105°C
- Storage temperature: -40 / 70°C
- Dissipation factor (DF): 20x10-4at20°C,50Hz
- Insulation resistance(IR): >2000MQ uF (500Vdc,60s)
- Voltage test between terminals (Ut-t): 2 x UN for 5 s
- Voltage test between terminals with case: 2200 Volt for 2 s
- Expected life: CLASS B-10000 hours CLASS C - 3000 hours
- Dielectric material: Metalized polypropylene film
- Terminal: Wires
- Case: Plastic
- Filling: V-0 Flame retardant epoxy resin V-0
- Remarks :When the altitude is more than 2000m1the effect of convection cooling and external insulation should be considered.:
