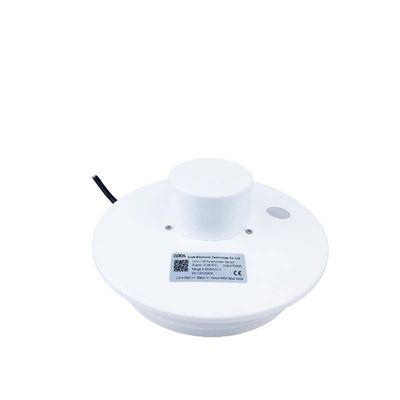

Model CDG-11B -Solar Pyranometer Radiation Sensor

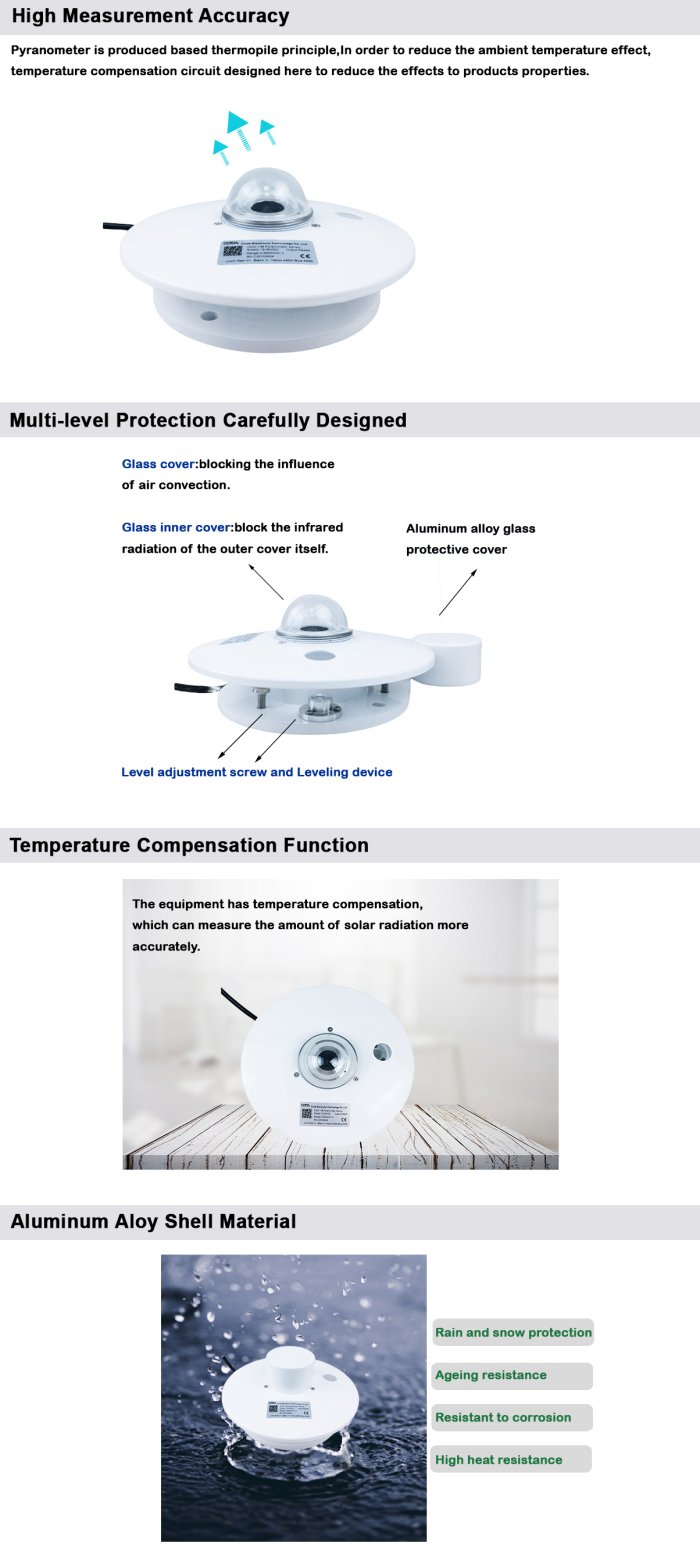

CDG-11B Pyranometer is produced based thermopile principle; sensing elements are made by winding - plated thermopiles with multi contacts. Its surface is coated by black coating with high absorption rate. Hot contacts on the sensors surface, while the cold junction is located within the body, temperature difference between the hot and cold junction generates electromotive force, the thermoelectric effect is proportional to the solar radiation. In order to reduce the ambient temperature effect.
Item: Specification
Spectral range: 300-3200nm
Supply: 5V,12-24VDC
Range: 0-2000W/m2
Output: 0-20mV,0-5V,4-20mA,RS485,SDI-12
Sensitivity>: 7-14μV*W-1*m2
Internal resistance: 350Ω
Non-linearity（Accuracy）: <±2%
Measuring angle: 2π solid angle
Response time: ≤20s(99%)
Zero drift( temperature drift:5k/h): ±5W/m2
Stability: ±2%/year
Cosine correction: ≤±7%(Solar elevation angle=10°)
Temperature effect: ±2%(-10℃-+40℃)
Operating temperature: -40℃-+80℃
Recalibration interval: 2 years
Desiccant: Silica gel desiccant
Weight(unpacked): 2.5kg
Pack: Aluminum alloy instrument box
Dimension: ø185*120mm
Installation bracket(optional): Horizontal bracket or adjustable angle bracket
Ingress Protection: IP65
Storage Condition: 10℃-60℃@20%-90%RH
