Schneider Electric

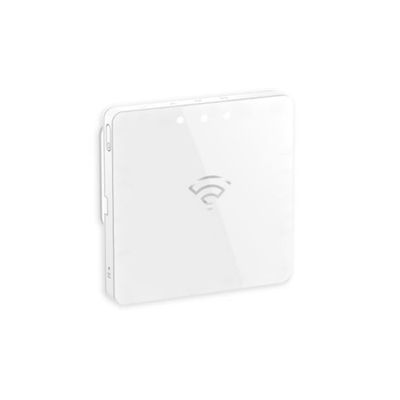

Model CLP501902 -Wiser Hub
Wiser central communication interface. Communicates to the cloud via Ethernet or Wifi to the home modem/router. Connects and controls Wiser devices via the Wiser by SE App using Zigbee technology. Allows you to control your home from a remote location, anywhere in the world. Control your smart device with your favorite smart speaker, works with Alexa & Google home. Environmental performance of the product.
Most popular related searches
Main
- range: Wiser
- product or component type: Zigbee/IP gateway
- device application: Zigbee/IP network interface
- Complementary
- colour: White
- communication network type
- Ethernet conforming to IEEE 802.3
- WLAN - 2.4 GHz conforming to IEEE 802.11 b/g/n
- ZigBee - 2.4 GHz conforming to IEEE 802.15.4
- port Ethernet: 10/100BASE
- connector type
- Connector(s)1 x micro USB port female for adaptor
- connector(s)1 x 2-pin terminal block for 12 V DC power supply
- electrical connection: Cable, 0.25…1.5 mm² (terminal)
- [Us] rated supply voltage
- 5 V DC, <1 A
- 12 V DC, <0.5 A
- realtime clock: With RTC-battery set
- local signalling: Indicator: 3 LEDs (white)
- width: 86 mm
- height: 86 mm
- depth: 34 mm
- Environment
- ambient air temperature for operation: 0…40 °C
- relative humidity: 10…90 %
- environmental characteristic: Indoor use
- IP degree of protection: IP20
- standards
- EN 62368-1
- IEC 62368-1
- product certifications: CE
- Packing Units: Unit Type of Package 1
- PCE: Number of Units in Package 1: 1
- Package 1 Weight: 357 g
- Package 1 Height: 6.9 cm
- Package 1 width: 13.4 cm
- Package 1 Length: 18.7 cm
- Unit Type of Package 2: CAR
- Number of Units in Package 2: 8
- Package 2 Weight: 3.263 kg
- Package 2 Height: 16.5 cm
- Package 2 width: 29.2 cm
- Package 2 Length: 40.3 cm
- Unit Type of Package 3: P12
- Number of Units in Package 3: 320
- Package 3 Weight: 137.62 kg
- Package 3 Height: 105 cm
- Package 3 width: 80 cm
- Package 3 Length: 120 cm
