HYDAC Technology Corporation

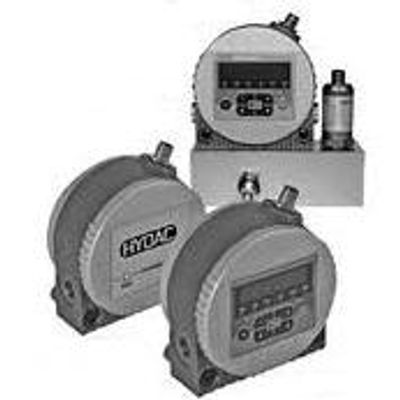

Model CS 1000 Series -Contamination Sensor
The CS 1000 Contamination Sensor is the latest HYDAC development for continuous measurement of solid contamination of fluids. Using the latest technology and materials, the CS 1000 is a reliable measuring instrument that is permanently mounted on your mobile or industrial equipment.
Most popular related searches
predictive maintenance
condition monitoring
power monitoring system
online condition monitoring
power system monitoring
power monitoring
hydraulic power unit
voltage data
hydropower
The attractive cost-to-performance ratio makes it especially interesting for OEM applications. Online, real-time condition monitoring allows you to have total predictive maintenance.
- Monitoring system on vehicles such as
- Construction equipment
- Agricultural machinery
- Mobile and stationary mining equipment Industrial hydraulic systems
- Integration into power unit monitoring systems
- Hydraulic test stands Combination with filter unit
- Version with or without display
- Display with pivot-function
- Display with 6-digit ISO Code (optional)
- Measurement of solid particle contamination in hydraulic and lubricating fluids
- Compact and rugged design
- Type of protection IP67
- Max. pressure 4350 psi (300 bar)
- Max. viscosity 4635 SUS
- Voltage supply 9 - 36VDC
- Data output 4 - 20mA or 0 -10 VDC
