Model CSG-SL 156 -Mono-Crystalline Cells

SHARE

CSG soiar Cells production processes are fully Inspected nom the silicon water tiput to cells packaging. The results from series production have shown a mean efficiency of 18.0%. Our m anufact uring techniques allow us to produce super-efficient solar cells Wth efficiency up to 18.60%.

Most popular related searches
silicon solar cell
solar cell
crystalline silicon
monocrystalline solar
solar electricity
solar product
solar design
  • Currenl measurement under STC to avoid module mismatches. Hot spot resistance testing of every single cell via the reverse current characteristic.
  • Across-the-board soft Handling during production to avoid micro cracks end reduce breakage rates during onward processing.
  • High-quality Homogeneous appearance due to mono-crystalline ,werterila and steady QC processes Electrical Properties
  • Excellent Iong-term electrical stability through crystalline silicon technology
  • Excellent low light behavior thanks to parallel resistance checks on every cell.
  • Classification into very narrow currant classes



  • Product: Monocrystalline silicon solar cell

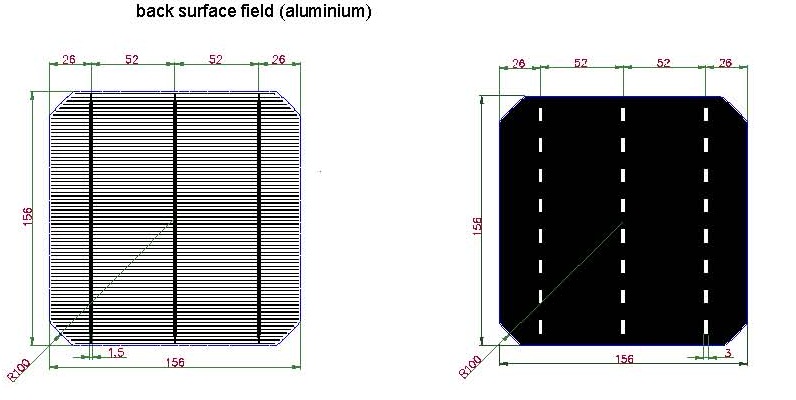

  • Format:  156mm x 156mm +/- 0.5 mm, diagonal 200mm
  • Average thickness: 190um-tf- 30 urn
  • Front (-): 1.5 mm bus bars (silver),blue anti-reflecting coating (silicon nitride)
  • Back (+): 3.0 mm wide soldering pads (silver),back surface field (aluminium)
