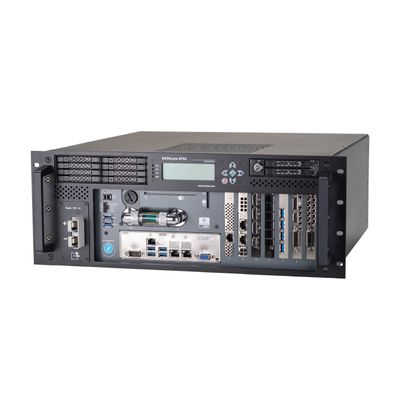

Model DATALynx ATX4 -Automotive 19inch Vehicle Server
DATALynx, the b-plus series for high performance computing solutions, achieves the next level for in-vehicle applications. With a completely new designed b-plus 100A DC Power Supply and an extremely powerful and fully integrated liquid cooling setup the DATALynx ATX4 enables maximum CPU and GPU performance from -10 °C to +60 °C operating without throttling. With several PCI express slots and Add-ons the system can be configured as a multi-I/O recording setup or a deep learning and AI platform with 5 high-power GPUs (e.g. NVIDIA®). The dual B2S extension enables compatibility to all xSTORAGE solutions including NVMe based cartridges up to 96 Gbit/s sustained write performance per xSTORAGE.
- Datacenter performance meets vehicle suitability
- Ultimate GPU performance for your AI
- Flexible adaptable to your needs
- Safe operation in the vehicle
Watch the video and get an overview of DATALynx ATX4, the newest generation of vehicle servers.
Add-on PCIe
- Active Add-on with up to 4 additional PCIe 4.0 slots
- Optional AC/DC Power Supply for GPUs
- b-plus 802.1AS XTSS TSN extension
Add-on B2S
- Active Add-on with PCIe 3.0 or 4.0 Switch
- 2x PCIe x8, 2x BRICK2 Storage
- NVMe solutions with up to 96 Gbit/s
Add-on GPU
- Active Add-on for liquid cooled graphics cards
- PCIe 5.0, 850 W ATX 3.0 power supply
- Suitable for all GPUs over 300 W
- EP2: AMD EPYC™ 7002 series
- EP3: AMD EPYC™ 7003/2 series
- SX2: Intel® 2nd Gen Xeon® Scalable
- 1250 W DC Power Supply with 6 – 32 V IN
- Up to 2250 W DC Power Supply max.
- 1600 W AC Power Supply optional
- Up to 768 GB DDR4-3200 ECC RDIMM
- All storage options exchangeable
- Liquid cooled CPU and Power Supply
- -10 °C to +60 °C full operating
- μC based System control and monitoring
- Multiple Add-ons for additional flexibility
- b-plus XTSS 802.1AS compatible
