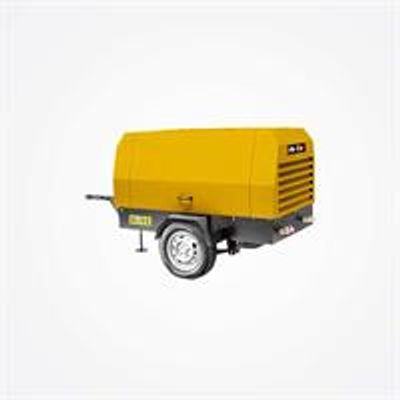

Model DI-AC7 -Air Compressor
DOVE Air Compressors are widely used in all kinds of heavy duty industries, such as mining, hydropower, oil and gas exploitation, borehole, shipyard, construction, chemical, industry, quarry, sandblasting, pipeline pressure test, public works, etc.
- Advanced Compression Element & Powerful Engine.
- Safe and Reliable Performance.
- Easy to Operate & Maintain.
- Energy Saving & Environmental Protection.
Machine:
Free Air Delivery: 3.6m3/min = 127cfm
Normal Working Pressure: 7 bar (4-7 bar is adjustable)
Weight: 850 kg
Dimension (mm): 2850 x 1470 x 1360
Wheel Quantity: 2
Size x No. of Air Outlet Valve: G3/4″ x 2
Diesel Engine:
Model: YSD485G
Type: Water-cooled, 4-stroke, direct injection
Bore Stroke (mm) x No. of cylinders: 85 x 95 x 4mm
Engine Capacity: 5.5 L
Rated Rational Speed: 2400 R/min
Rated Power: 27kW/36hp
Engine Oil Capacity: 10 L
Fuel Tank Capaity: 40 L
Storage Battery Voltage: 24 V
Compressor:
No. of Compression Stage: 1
Lubricating Oil Capacity: 12 L
