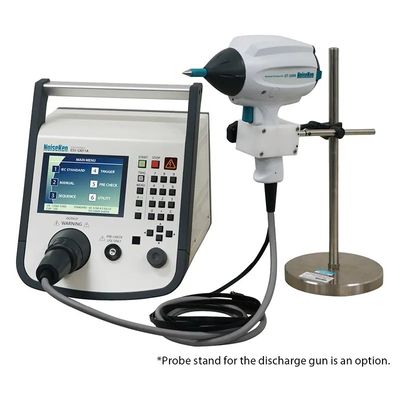

Model ESS-S3011A & GT-30RA -ESD Simulator
Free you from the hassle of testing by the pre-check function and the weight reduction of the discharge gun. EMC test equipment to evaluate the resistibility of electronic equipment when energy charged on a human body or object is discharged to the electronic equipment. This can be available for evaluating malfunctions or functions declines of electronic equipment against the ESD. Programmable simulator to ease some complicated tests. The output voltage is up to 30kV allowing to perform testing compliant to IEC61000-4-2 & ISO 10605 Standards.
Achieve more reliable test! Equipped with "3 Pre-check Functions"
The new ESD simulator is equipped with 3 pre-check functions; "high voltage power output check", "insulation failure check", and "discharge relay operation check" on the main body and discharge gun.
“CR constant indicator” to make sure the correct unit attachment
The constants of the discharge resistance and discharge capacitor, which were previously disassembled and checked, are now displayed on the main unit screen.
Easy to Check for Discharge Equipped with discharge detection function
“Infra-red Remote Controller” standard attached to realize the setting remotely from the generator
The discharge gun became lighter and easier to use
The discharge gun itself has been reviewed from scratch to achieve weight reduction and the best balance of the center of gravity.
ISO 10605 standard compliant discharge gun package available
By adding the optional discharge cup and CR units, it performs tests that comply with the ISO 10605 standard.
High visibility LCD panel and operatability
Reviewed the past operatability, adding Ten-key and Rotary knob realizing an easier and more comfortable operation. can be realized.
