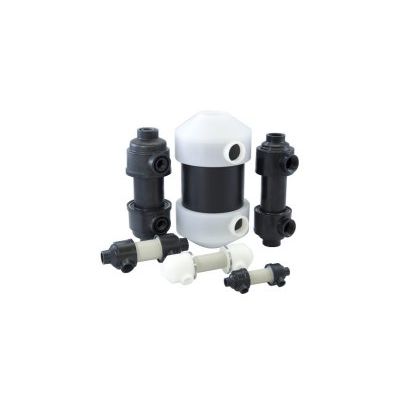

Model FC - Fuel Cell Humidifiers
From Gas Humidifiers
Perma Pure’s FC Series Fuel Cell Humidifiers are the industry standard and offer unparalleled performance, reliability and lifetime up to 20,000 hours. Designed to meet the exacting requirements of the fuel cell user, these Nafion-based products provide consistent, repeatable humidification of air and hydrogen across the specified flow range. Perma Pure Fuel Cell Humidifiers feature a low pressure drop and do not require power to operate, greatly reducing the parasitic load on your system. Benefits of the FC include:
-
Most popular related searches
Very high efficiency
- Very high efficiency
- No power consumption
- No freeze/thaw issues
- Self-limiting humidification
- Compact and robust
- Gas to Gas or Water to Gas humidification
- Suitable for use with H2

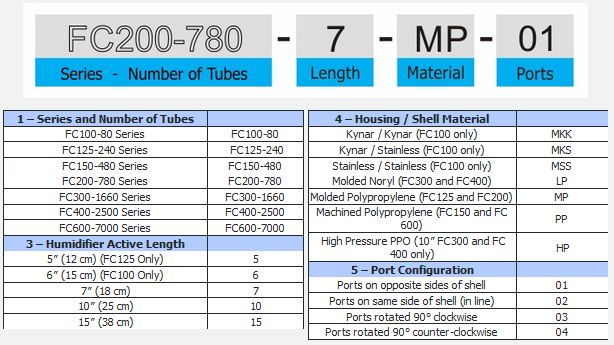

Intelligent Product Numbering System
Perma Pure offers the FC-Series humidifier in a wide range of sizes with variety of lengths, materials and port configurations. Choose the size based on your flow rate and pressure requirement and build your FC Humidifier according to the selection guide and the part number table below:

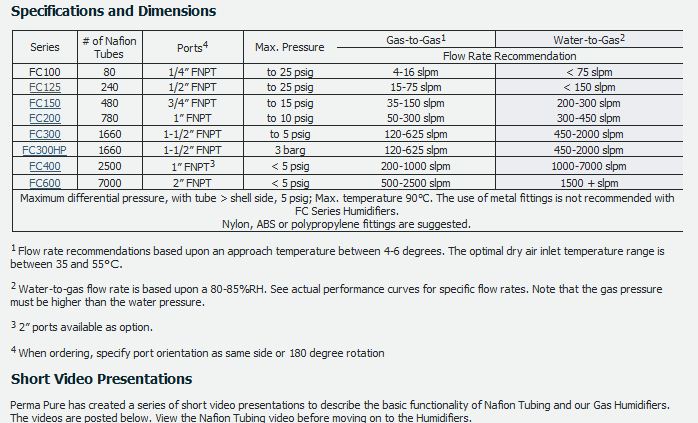

FC Series Selection Guide for Fuel Cell Systems
FC Series Selection Guide for Fuel Cell Systems
- FC100 Series – Compact humidifier for portable systems up to 500W. Weighs less than 100 grams. Gas flows to 16 alpm
- FC125 Series – Built using low-cost molded parts. The FC125-Series humidifiers are an ideal choice for systems up to 1kW. Gas flows to 80 alpm (gas/gas) and 200 alpm (water/gas)
- FC200 Series – Ideal for systems up to 3kW, the FC200-Series is a rugged, compact humidifier for mobile and stationary applications alike. Gas flows to 225 alpm (gas/gas) and 650 alpm (water/gas)
- FC300 Series – Our standard humidifier for gas-to-gas humidification in 5kW systems, the FC300-Series is available in ABS or PPO (Noryl) for high pressure applications. Gas flows to 700 alpm (gas/gas) and 2,000 alpm (water/gas)
- FC400 Series – Available in both ABS and PPO, the FC400-Series is designed to provide ideal humidification for 7-12KW systems. The high pressure model is now being evaluated for use in passenger cars. Gas flows to 1,000 alpm (gas/gas) and 7,000 alpm (water/gas)
- FC600 Series – The FC600-Series is suitable for gas-to-gas humidification for systems up to 50kW. When operated water-to-gas, this humidifier is a great choice to replace a bubbler in large test stands (80-100 kW). Gas flows to 1,000 alpm (gas/gas) and 7,000 alpm (water/gas)
