Glamox AS

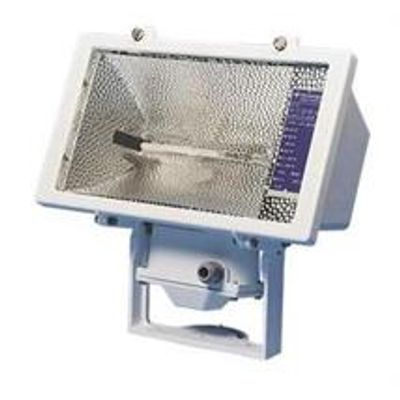

Model FLH -Floodlights for Halogen Aluminium Housing
FromGlamox AS
Floodlights for halogen lamps. Halogen floodlights give instant light without warm up or cool down time with good colour rendering. They are designed to meet the marine requirements and are applicable for decks, rescue areas, holds and ramps. They are corrosion proof and produced with seawater resistant aluminium.
Most popular related searches
- Light source
- Halogen lamp (115C/230V) with R7s or E40 socket. 24V on request. Lamp included.
- Lamp base R7s, E40
- MountingAdjustable bracket with three mounting holes, Ø 9mm
- ElectricFlexible wiring, silicone insulated, heat resistant up to 180° C.
- HousingHousing, mounting bracket and connection box in seawater resistant aluminium. Bolts and nuts of stainless steel.
- ApplicationDecks and hulls, industrial and sport areas, on shore buildings, life boats (FLH 500).
- DesignMeet shock testing according to IEC 69-2-27 test Ea
- FinishPowder coated white RAL 9016 and enamelled up to 70 - 80 μm thickness.
- Dimensions (mm)W: 250 H. 365 L:383
- PaneFrame with safety glass and silicone gasket.
- ReflectorNarrow beam (NB) or wide beam (WB) light distribution
- Cable entryCable gland M20
- TerminationScrew Terminal 0.5 mm² to 4 mm².
- Remarks/OptionsAntidazzle shade
- Swivel arm
- Pendent mounting bracket
- Bracket for crane
