Model Free Jet -Hydro Turbine
The Free Jet hydroEngine model is rated up to rated 50-1400 kW and does not need a draft tube.
Most popular related searches
power factor correction
protective relay
electrical equipment
power factor
hydro turbine
hydropower turbine
electric power generation
electrical power generation
electric power
electrical power
Head
6 – 20 meters (net)
Power
50 – 1400 kW
- Works best with higher heads, and/or where draft tubes are a challenge due to civil works constraints

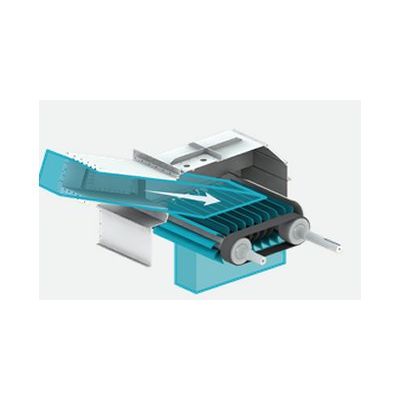

- Open flow, cylindrical runners, vertical discharge, and no draft tube
- Units rated up to 20 m net head

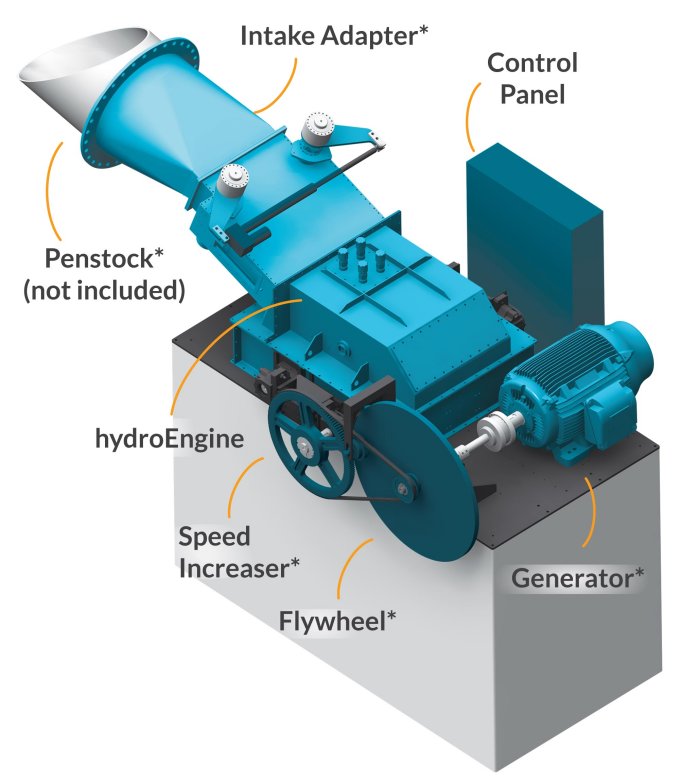

Hydro-mechanical equipment
- hydroEngine
- Intake adapter
- Design specifications for outlet or plinth
- Speed increaser (gearbox or belt drive)
- Special assembly tools
Electrical equipment
- Generator
- Power Factor Correction (if required, and as specified, by customer)
- Grid protection relay (as specified by customer)
Instrumentation and control equipment
- Unit SCADA control system (hardware and software)
- Integrated Sensors:
- – hydroEngine shaft speed
- – Nozzle flow control
- – Powertrain health
- – Generator output
- – Water levels (upper and lower pools)
