Komax - Model TS1500-HV -Model HV - Test Bench System With Fully Integrated Test Technology

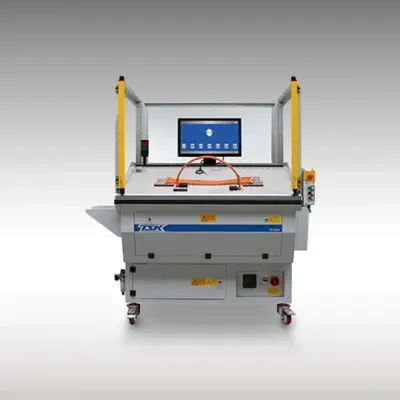

The TS1500-HV system has been specially developed for testing of high-voltage and data sensor cables. It conforms to international standards and will be used in the cable assembly. The test system TS1500-HV is suitable for the automated testing of video, antenna and sensor cables, for example HSD, FAKRA, airbag or high-voltage cables. This testing system is equipped with best-in-class devices and the CS WIN nx® software and is thus individually programmable to suit customer requirements. The ergonomic work area (Test grid inclination 20°) can reach a width of 1200 mm with far over 3600 mm. The height is proceted by barriers on the sides. The TS1500-HVariable offers as well easy positioning of the test adapters, a standardized interface and convenient adaptation. Other models and sizes are available on request. The TS1500-HV test system can be combined with all cable testers and can be configured according to customer requirements.
TS1500-HV 1200x600
Metric
Dimensions/height min.: 1020 mm
- Dimensions/height max.: 1070 mm
- Dimensions/width min.: 1350 mm
- Dimensions/width max.: 1740 mm
- Depth max.: 1060 mm
- Total weight, without test adapter (modules) approx.: 250 kg
- Number of system segments: 1
- Voltage (AC), input min.: 90 V
- Voltage (AC), input max.: 260 V
- Frequency, input min.: 50 Hz
- Frequency, input max.: 60 Hz
- Voltage, input, connector: Safety plug (240 V, 16 A, 3-pin)
- Voltage, input, connector optional: CEE plug (400 V, 16 A, 5-pin)
- power supply 1, voltage (DC): 24/12 V
- power supply 1, current (DC) max.: 40 A
- power supply 2, voltage (DC): 5 V
- power supply 2, current (DC): 10 A
- Total power, standard (depending on the number of power supply units) max.: 1500 W
- Ambient temperature, operation min.: +10 °C
- Ambient temperature, operation max.: +40 °C
- Ambient temperature, storage min.: -10 °C
- Ambient temperature, storage max.: +60 °C
- Air humidity non-condensing min.: 40 %
- Air humidity non-condensing max.: 75 %
- Emission sound pressure level (according to DIN 45635) max.: 80 dB
- Protection class: IP 10
- Operating height (feet above sea level) max.: 2000 m
- Test grid width: 1200 mm
- Test grid depth, horizontal: 600 mm
- Test grid area: 0.72 m²
- max. number of test adapters (modules) to be installed for size100x100: 72
- Test grid inclination, horizontal: 20 °
- Maximum permissible load on the test grid: 1,1 / 100 g/cm²
- High voltage test points min.: 8
- High voltage test points max.: 144
- Cable tester CT30ix: yes
- Operating pressure (according to ISO 8573-1: 5/5/4) min.: 5 bar
- Operating pressure (according to ISO 8573-1: 5/5/4) max.: 7 bar
- Compressed-air connection: Kupplungsstecker Rectus G1/4 26AF AW13 bar
- Pneumatic connections min.: 40
- Pneumatic connections max.: 80
Imperial
- Dimensions/height min.: 40.15 in
- Dimensions/height max.: 42.12 in
- Dimensions/width min.: 53.14 in
- Dimensions/width max.: 68.5 in
- Depth max.: 41.73 in
- Total weight, without test adapter (modules) approx.: 551.15 lb
- Number of system segments: 1
- Voltage (AC), input min.: 90 V
- Voltage (AC), input max.: 260 V
- Frequency, input min.: 50 Hz
- Frequency, input max.: 60 Hz
- Voltage, input, connector: Safety plug (240 V, 16 A, 3-pin)
- Voltage, input, connector optional: CEE plug (400 V, 16 A, 5-pin)
- power supply 1, voltage (DC): 24/12 V
- power supply 1, current (DC) max.: 40 A
- power supply 2, voltage (DC): 5 V
- power supply 2, current (DC): 10 A
- Total power, standard (depending on the number of power supply units) max.: 1500 W
- Ambient temperature, operation min.: +50 °F
- Ambient temperature, operation max.: +104 °F
- Ambient temperature, storage min.: +14 °F
- Ambient temperature, storage max.: +140 °F
- Air humidity non-condensing min.: 40 %
- Air humidity non-condensing max.: 75 %
- Emission sound pressure level (according to DIN 45635) max.: 80 dB
- Protection class: IP 10
- Operating height (feet above sea level) max.: 6561 ft
- Test grid width: 47.24 in
- Test grid depth, horizontal: 23.62 in
- Test grid area: 7.75 ft²
- max. number of test adapters (modules) to be installed for size100x100: 72
- Test grid inclination, horizontal: 20 °
- Maximum permissible load on the test grid: 2,42 / 15,5 lb/in²
- High voltage test points min.: 8
- High voltage test points max.: 144
- Cable tester CT30ix: yes
- Operating pressure (according to ISO 8573-1: 5/5/4) min.: 72.51 psi
- Operating pressure (according to ISO 8573-1: 5/5/4) max.: 101.52 psi
- Pneumatic connections min.: 40
- Pneumatic connections max.: 80
