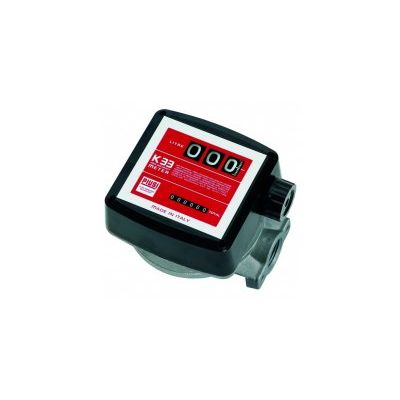

Model K33 -Diesel Meters
K33 and K44 are nutating-disk meters that measure the exact quantity of the dispensed fuel or lubricant. They are designed for non-commercial use only. These flow-meters are reliable, inexpensive, easy to install and simple to calibrate on the workplace. The Pulser model is fitted with a pulse emitter for connection to a fuel management system. Thanks to reduced flow resistance, they can also function by gravity.
Most popular related searches
diesel fuel management system
diesel meter
fuel pump
fuel oil meter
fuel dispenser
fuel meter
fuel metering
- Flow-rate (range): 20÷120 l/min (5,3÷32 gal/min).
- Precision: ±1% of flow range after calibration.
- Repeatability: 0,2%.
- Max. operating pressure: 10 bar (142 psi).
- Bursting pressure: 30 bar (426 psi).
- Readout system:
- K33, 3-digit subtotals (max 999 litres), 6-digit totals.
- K44, 4-digit subtotals (max 9999 litres), 7-digit totals.
- Resolution: 0.1 litre.
- Pulser card type: “Open collector”, frequency: 10 pulses/litre, power supply: 6-24 V DC, max 10 mA.
