Kesheng Electronic Co., Ltd.

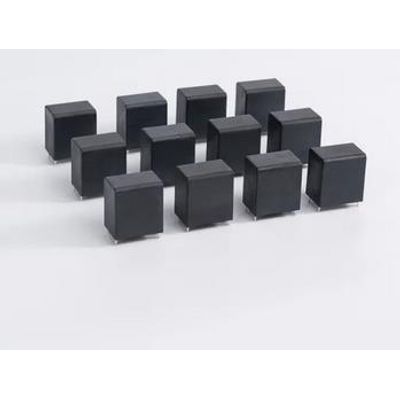

Model MKP-C3D / MKP-C3S -DC Link Capacitor (Pin Type)
MKP-C3D / MKP-C3S / High temp.+High Humidity. High density DC-link capacitor (more C per volume). Good self-healing properties. Over-voltage capability. Low losses with high current capability. High reliability. Long useful life.
Most popular related searches
DC link capacitor
frequency converter
power electronic
battery charger
solar inverter
power supply inverter
power capacitor
solar power supply
industrial power supply
inverter charger
- Frequency converters
- Industrial and high-end power supplies
- Solar inverter
- UPS
- Battery chargers
- Motor drives
- Reference standards: IEC 61071,IEC 60068,GB/T17702
- Rated voltage CN: 500VDC ~ 1200VDC
- Rated capacitance CR: 1 μF to 200 μF
- Capacitance tolerance: ± 5 %
- Operating temperature: -40°C~105°C
- Storage temperature: -40°C~85°C
- Insulation resistance(IR): >10 000 s,1 min,measuring voltage 500 V
- Voltage test between terminals (Ut-t): 1.5 x UNDC,10s
- Voltage test between terminals with case: 2200 V AC, 50 Hz,60s
- Expected life: 100 000 h at UNDC and 70?
- Dielectric material: Polypropylene film
- Terminal: pins
- Case: Plastic case
- Filling: black or white epoxy
- Remarks :When the altitude is more than 2000m,the effect of convection cooling and external insulation should be considered.
