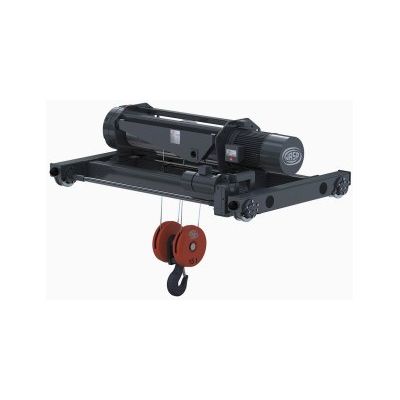

Model N Range -Industrial Cable Hoists Crane

SHARE

Our cable hoists with a two-speed lifting motor are supplied with the proven experience of thousands of pieces of equipment installed in recent years.

Most popular related searches
cable hoist
cable crane
Its main strengths are:
  • Dual winding motor brake with a short circuit rotor and IP 54 protection as well as other protections available on request.
  • Instantaneously triggered electromagnetic brake in case of power failure.
  • Elevation reducing gear of our own design comprised of gears mounted on bearings that turn continuously in an oil bath in a hermetically sealed cabinet.
  • Completely mechanised laminated steel drum, following the current FEM regulations.
  • Cable-Guide: Nodular casting, breakage and wear resistant. Consists of two pieces, which makes it easy to assemble. A spring is attached to the cable-guide which maintains tension during load elevating and lowering operations.
  • Load Limiter: With a snap action switch that complies with the machinery safety directive.
  • Load Block and Hook: Made from forged alloyed steel and suspended from a cross piece made from the same material, it is mounted on an axial bearing and contains a safety latch that prevents slings from being released.
  • Limit Switch: Operated by the cable-guide, it limits hook movement in extreme positions.
  • Capacity: 1 to 100 t
  • Span: 1 to 30 m
  • Work Group: M4 to M6
