Model OPS-1124 -Power Supply Modules

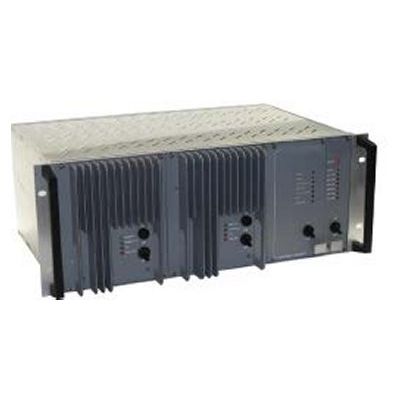

The OPS-1124 power supply and battery charger is a 4U 19" aluminium frame; it can host two PWS-1124 power supply modules and one BCU-1124 battery charger module. It is especially suited for use where redundant power supply is required, since each module can be hot-swapped without interrupting power output. The OPS-1124 features a connector for mains power input (VAC Line), a power connector for DC power output (VDC OUT), and a power connector for battery connection (Battery).
Most popular related searches
The BCU-1124 module is a microprocessor-controlled battery charger; it can:
- charge 24 V lead-acid batteries up to 200 A
- check battery charging status and end of charging
- check for possible overloading
- manage discharging, disconnecting battery load if the battery voltage drops below a threshold, in order to avoid damage to batteries due to excessive discharging.
The PWS-1124 module transforms the mains voltage (220 V ac) into dc voltage (24 V dc nominal).
- Power supply voltage: 220 Vac
- Output voltage: 24 Vdc
- Maximum output current: 20 A
- Signaling: Power On, Open Fuse
- Weight: 7 kg
- Operating temperature: -10 °C ÷ +55 °C
- Storage temperature: -40 °C ÷ +70 °C
- Humidity: Up to 95% with T: +25 °C ÷ +55 °C
