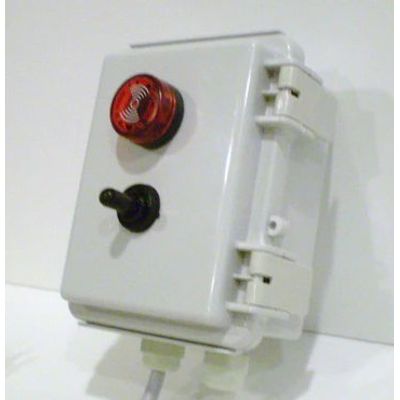

Model PLAB-1-110V -Power Loss Alarm Box - 110V AC
Model PLAB-1-110V Power Loss Alarm is designed for indoor or protected outdoor use. The unit features a non-metallic rugged enclosure, a combination red LED strobe/piezo buzzer, and external "power" and test switch. The unit is design to provide an audible and visual warning to notify of a power loss alarm condition. The alarm will trigger when the normal 120V AC power is lost and automatically reset when power returns.
- Compact, Wall-mounted Industrial Design
- Audible Buzzer / Visual Red Strobe
- External Auto-Power-Test Switch
- 110V AC Operation
- Automatic Alarm Reset
- Integral Power Cord Included
- Power Monitoring
- Freezer Alarm
Alarm Indication: Intermittent Red LED Strobe/Piezo Horn: 85 dB
Operating Voltage: 110V AC (Pre-wired Integral Cord Included)
Alarm Reset: Automatic
Max Device Load: 15 Amps
Enclosure: Wall Mounted, (PVC) Plastic
Operating Temperature: -40 to 175 ºF (-40 to 80 ºC)
Installation: For Indoor or Protected Outdoor Use
Dimensions: 5.9 X 3.93 x 2.75” (150 x 100 x 70mm)
