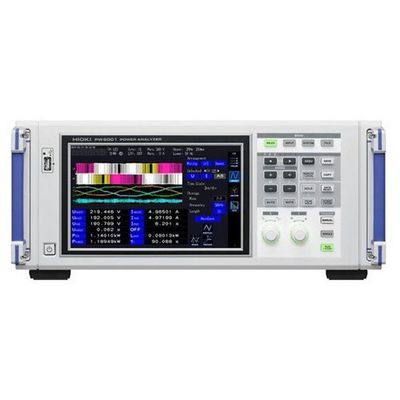

Model PW6001 -Power Analyzer

DC, 0.1 Hz to 2 MHz, 3-phase 4-wire, High Precision Power Analyzer for Motor and Inverter Efficiency Analysis.

Most popular related searches

Exclusive current sensor phase shift function lets you maintain accuracy even in high frequency, low power factor applications
Basic accuracy of ±0.02%*1 for power measurement *1 PW6001 accuracy only. Instrument delivers accuracy of ±0.07% even after the current sensor accuracy has been added.
High noise resistance and stability (80 dB/100 kHz CMRR, ±0.01%/°C temperature characteristics)
Accurate measurement even when the load is characterized by large fluctuations; TrueHD 18-bit resolution
10 ms data refresh while maintaining maximum accuracy (using a specially designed IC to make all measurements independently while performing simultaneous calculations.)
DC accuracy of ±0.07%, which is key for stable, accurate efficiency measurement.
Wide frequency bandwidth of DC, or 0.1 Hz to 2 MHz.
Achieve true frequency analysis with high-speed 5MS/s sampling (18 bit)
Synchronize 2 units for up to 12 channels*2 in real time *2 Two 6-channel models can be connected with an optical connection cable
Special triggers to enable waveform analysis and motor analysis without the need for an oscilloscope.
Wide band harmonic analysis up to the 100th order with a 1.5 MHz band
Send measured values to HIOKI data loggers using a Bluetooth® wireless technology compatible adapter (LR8410 Link-compatible products), Ver. 2.0 and later

Key Features
