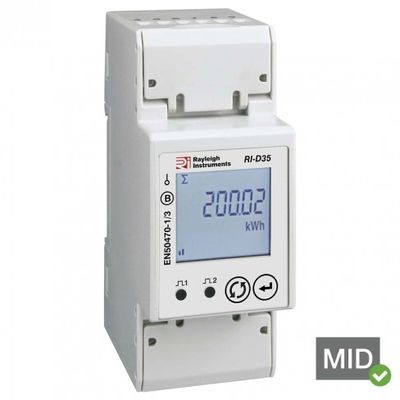

Model RI-D35-100 -Single Phase Multifunction Energy Meter
Features: 100A direct connected, High definition LCD display with white backlight, Import and export energy measurement, RS485 Modbus or Mbus models available, Two pulse outputs, Two module width DIN rail mounted, MID B+D Certified (SGS Cert. No. : 0120/SGS0361), LED pulse indication, Simple programming and operation, Auto or manual page scrolling.
Most popular related searches
energy meters
energy meter
energy metering
multifunctional energy meter
kWh energy meter
solar photovoltaic industry
domestic photovoltaic
single-phase energy meter
power factor
domestic solar industry
The RI-D35-100 series is a range of single phase multifunction DIN rail MID approved energy meters. Suitable for monitoring energy consumption in residential, solar PV, industrial and utility applications.
All models are MID approved (B and D) and may be used for billing purposes.
A high efficiency white backlit LCD display provides a clear indication of measured values in all light conditions.
The meter is available in two versions:-
The unit is housed in a compact two module width case suitable for 35mm DIN rail mounting.
Displayed Parameters
All models are MID approved (B and D) and may be used for billing purposes.
A high efficiency white backlit LCD display provides a clear indication of measured values in all light conditions.
The meter is available in two versions:-
- Single tariff with two pulse outputs and RS485 Modbus communication
- Single tariff with two pulse outputs and Mbus communication
The unit is housed in a compact two module width case suitable for 35mm DIN rail mounting.
Displayed Parameters
- Phase to Neutral Voltage (V)
- Phase Current (A)
- Frequency (Hz)
- Power Factor (PF)
- Power Max. Demand (MD kW)
- Active Power (kW)
- Reactive Power (kVAr)
- Apparent Power (kVA)
- Import Active Energy (kWh)
- Export Active Energy (kWh)
- Total Active Energy (kWh)
- Import Reactive Energy (kVArh)
- Export Reactive Energy (kVArh)
- Total Reactive Energy (kVArh)
Additional Information
Manufacturer: Rayleigh Instruments
