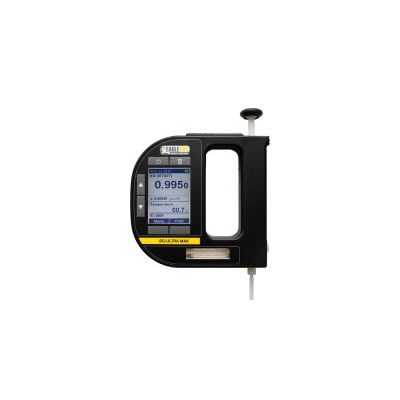

Model SG-Ultra Max -Digital Hydrometer / Density Meter
The Eagle Eye SG-Ultra Max is the premier portable digital hydrometer/density meter in the SG-Series hydrometer line. The SG-Ultra Max measures the density and density-related values of your sample within seconds. Results appear on the large LCD screen with backlight and are ready for storage, printout or export to a PC. The lightweight and robust design enable on-site operation in a wide range of environments. Pump spills do not enter the instrument. The SG-Ultra Max digital hydrometer features leakproof housing for operation in industrial and field applications including battery testing solutions for utilities and telecoms, food & beverage testing, quality control, biotechnology and many more. Proper care and cleaning procedures will ensure the extended life of the SG-Ultra Max.
The internal memory of the SG-Ultra Max digital hydrometer stores up to 1,024 measurement results with a timestamp and sample ID. Up to twenty measuring methods and over 100 sample IDs can be stored for easy identification. With over 90 hours of battery life and energy-saving features, the SG-Ultra Max offers maximum efficiency for your testing needs.
Supported measuring units include: density, density at reference temperature, specific gravity (sg), Alcohol, API, °Baumé, °Brix and five programmable custom functions to ensure your measurement requirements.
- SG-Ultra Max Body
- (1) 180 mm Sample Tube
- 2 mL Plastic Syringes
- Luer Adapter 1/4" UNF (for syringe filling)
- IrDA Adapters
- Interface for Exporting Data to PC
- Carrying Case
- User Manual
Eagle Eye offers an additional unit that is specifically designed for petrochemical testing. The SG-Ultra Max Ex Petrol has intrinsically safe special housing that is explosion proof and resistant to petrochemical samples, and offers all the premier features as the SG-Ultra Max digital.
- Accurate 99.999% Accurate
- User-Friendly Compact, lightweight, and allows for one-hand measurement. Large LCD display screen with backlight.
- Robust Rugged, comes with protective carrying case. Sustains tough field environments with leakproof housing
- Wireless Communication Infared data interface for data exchange with a PC and data export to a printer (data transfer accessories included).
- Efficient Storage of up to 100 sample IDs for easy identification. Storage of up to 20 measuring methods. Stores up to 1,024 total measurement results including timestamp and sample ID.
- Reliable CE Compliant and One Year Warranty
- Utilities
- Telecom
- Petrochemical
- Aviation
- Alcohol
- Environmental
- Food & Beverage
- Cosmetics
- Biotechnology
- Laboratory Testing
- Mining
- Green Energy
- Transportation
- Uninterruptible Power Sources (UPS)
- Laboratory Testing
- General Quality Control
- Measurement Range:
- Density: 0.000 – 3.000 g/cm3
- Sample Temperature: *0 – 80 °C (32 – 176 °F)
- Viscosity: 0 – 1,000 mPa
- Accuracy:
- Density: 0.001 g/cm3
- Temperature: ±0.2 °C (±0.4 °F)
- Resolution: 0.0001 g/cm3
- Repeatability: 0.0005 g/cm3
- Minimum Sample Volume: 2 mL
- Calibration Method: Automatic with distilled water
- Communication: IrDA Interface
- Display: Backlit LCD
- Internal Storage: 1024 Results
- Operating Environment: -10 – 50 °C (-15 – 122 °F)
- Power Requirements: (2) AA Batteries
- Dimensions: 140 x 138 x 27 mm (5.5 x 5.4 x 1.0 in)
- Weight: 368 g (13 oz)
*Sample must not freeze within the measuring cell!
