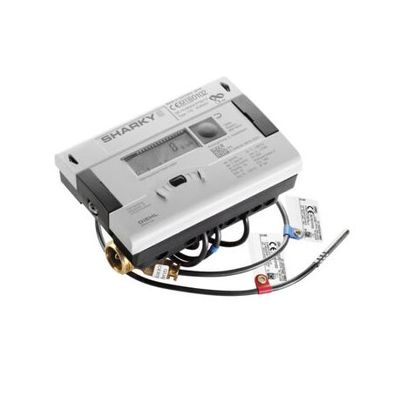

Model Sharky 775 -Ultrasonic Compact Energy Meter
FromDiehl Metering
APPLICATION: SHARKY 775 is a ultrasonic compact energy meter designed for measuring the energy consumption in heating and bifunctional (heating/cooling) application, for billing purposes. The measurement principle is static and based on the measurement of the transit time. Ultrasonic technology offers many benefits: no moving parts (prevents wear and tear of the metering components), low pressure loss, large metering dynamics and low start flowrate, insensitiveness to suspended particles...
Most popular related searches
compact energy meter
energy meters
energy meter
energy metering
ultrasonic energy meter
thermal energy meter
battery lifetime
heating and cooling
energy consumption
thermal energy
- MID approval in class 2 with dynamic range (qi:qp) up to 1:250 (depending on DN), standard 1:100
- Heat-transfer fluid: water
- Complete range from DN 15 qp 0.6 m³/h up to DN 100 qp 100 m³/h
- Low power consumption enabling a long battery lifetime (up to 16 years)
- Integrated radio option
- Modular version, M-Bus, M-Bus RS232, M-Bus RS485, Modbus RTU RS485, analog outputs 4-20mA, pulse outputs and inputs
- Programmable installation side (in option)
- Improved power consumption ->longer battery lifetime
- Extensive readable data memory
