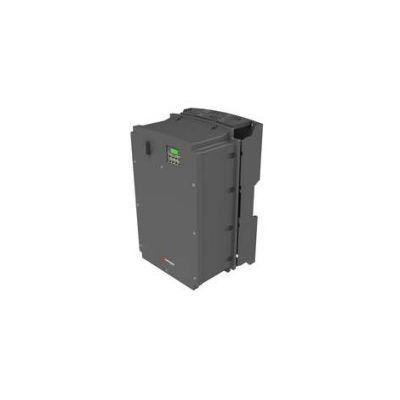

Model Sinus H -Inverters

SHARE

Compact, multi-purpose, high-performing inverter for: Three-phase asynchronous motors. Three-phase synchronous motors.

Most popular related searches
permanent magnet motor
inverter
energy saving
  • Degree of protection IP66 available up to model 0030. Standard version featuring IP20
  • Mains disconnect switch integrated into IP66 models
  • Optional LCD graphic keypad
  • Zero Stack installation
  • DC input inductor: integrated into model Sinus H 0034 External DC inductor available for models Sinus H 0001…0030
  • Braking module integrated up to model Sinus H 0030
  • Overload up to 120% for 60s (Normal Duty)
  • Overload up to 150% for 60s (Heavy Duty)
  • Overload up to 200% for 4s
  • Operating temperature with no derating: -10°C up to 50°C depending on the type of overload
  • Integrated RS485 serial port, MODBUS RTU communications protocol
  • Integrated EMC filter: type A1 or A2 depending on the model
  • Integrated Safe Torque Off (STO) function. Certified according to EN61508, SIL2 and EN ISO 13849-1, PL d
  • Standard compliance: RoHS, CE, EAC, RCM and UL
  • Integrated control methods: V/F, Sensorless Vector Control and Sensorless Permanent Magnet Motor Control
  • Integrated PLC function: up to 18 programmable logic blocks
  • Energy Saving function
  • Lifetime Detection (capacitors and fans)
  • High torque even at low frequency values, 200%/0.5Hz
  • Multi-keypad function available with graphic LCD: enables controlling multiple devices from a single keypad
  • P2P (Peer to Peer) communications
  • Selectable motor autotuning: when stopped or when running
  • Compatible with the “REMOTE DRIVE” software for the remote control of the device
  • Graphic LCD keypad featuring Multi-keypad function
  • Smart Copier device enabling downloading/uploading the operating parameters and the firmware when the inverter is off
  • Conduit Kit for cable routing, NEMA1 protection
  • Flange Kit for the separation of the air flow for power section cooling.
  • Communicator Kit for the conversion of the comms protocol: Modbus/Profibus DP, CANopen, Modbus TCP, Ethernet/IP
  • Three-phase input/output inductors
  • DC Input inductor
  • Braking resistor
  • Output ferrites
