Model SMAJW-SMAJW 6G CLC260 -Flexible Interconnect Cable Assembly
XINQY RF cable assembly offers superior field-proven performance characteristics with low insertion loss and excellent VSWR in the market, less affected by noise or cross-talk or electromagnetic inference.

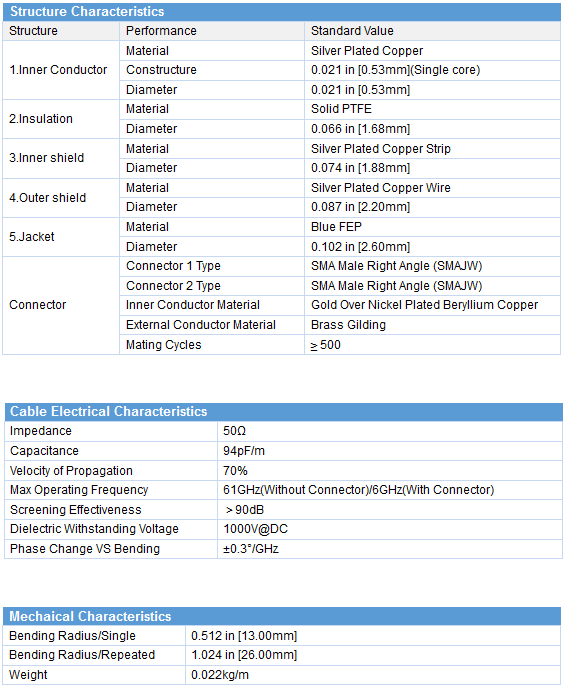

- Cable Type: XQY-CLC260-SMAJW-SMAJW-6G
- SMA Male Right Angle, SMA Male Right Angle
- 50Ω, DC-6GHz
- 70% Phase Velocity
- Shielding Effectivity > 90 dB
- Customizable Specifications
The RF flexible cable assembly has high flexibility and maintain stable electrical characteristics during bending and movement. This cable assembly offers a good compromise between a small diameter and a capacitance of 50 to 100 pF/m. With frequencies up to 67GHz, coaxial cables have better cut-through resistance so they are more reliable and durable. This cable assembly is a cost-effective cable assembly provided excellent electrical and mechanical properties. It’s widely used in communication, navigation, radar, aerospace, testing and measurement fields.
As a professional RF cable assembly supplier, XINQY provide consumers with high performance RF flexible cable assembly at competitive prices. For any enquiries or customization, please contact us at hansen.hou@xqy-tech.com and we will reply as soon as possible.
- Flexible Interconnect Cable Assembly
- SS405/TFIex-405 Equivalent Coax
- Max Frequency 6 GHz
- Shielding Effectivity > 90 dB
- 70% Phase Velocity
- Low Insertion Loss
- One Time Bend Radius of 0.512 Inches
Land Mobile Radio & Other
General Purpose
Communication Systems
Laboratory Use
Antenna Installations
Cellular & Wi-Fi Systems
