Zhejiang Shentai Solar Energy Co., Ltd.

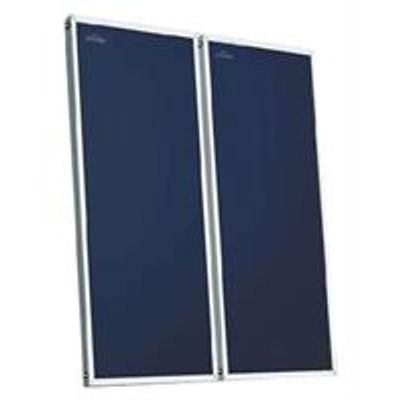

Model SP -Flat Plate Collector for Split Non-Pressurized Solar Water Heaters
Collector: Cover: Mistlite low iron extra clear tempered glass. Thickness of cover: 3.2mm. Diameter of pipe:. Header pipe: Φ22mm (thickness: 0.8mm). Risers: Φ10mm (thickness: 0.7mm). No. of risers: 8. Distance between pipes: 110mm. Liquid heat transfer: Water or Anti-freeze fluid(Water-glycol).
Most popular related searches
split non-pressurized solar water heating
non pressurized solar water heating
non-pressurized solar water heating
pressurized solar water heating
split pressurized solar water heating
solar water heating
solar water
split solar water heating
Absorber (Blue tech):
- Surface: Eta plus coating
- Thickness:0.12mm - 0.4mm
- Absorber emittance: 5%±2%(Eta Plus)
- Absorber absorption: 95%±2%(Eta Plus)
- Connection between pipes & absorber: Laser welding
Frame:
- Frame material: Anodized aluminum profile
- Insulation & thickness:
- Rock wool, density: 50Kgs/M3
- 20mm under the absorber & 20mm around walls
- Back plate material: Galvanized steel sheet, thickness: 0.4mm
