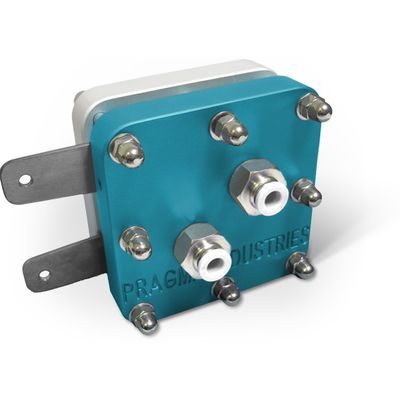

Model SquarePak -Hydrogen Fuel Single Cells
SquarePak is a professional single cell for designed for research and experimentation on Proton Electrolyte Membrane fuel cell. SquarePak cells are designed for ease of use and reliable testing results. Mounting pins inside the cells ensure perfect alignment of current collectors, monopolar plates and MEA. Monopolar plates have a 1mm holes to receive thermocouple and voltage sensor.
Most popular related searches
hydrogen fuel cell
fuel cell
hydrogen fuel
hydrogen fueling
voltage sensor
fuel cell design
fuel cell membrane
- Reliable and robust design
- Designed for easy and accurate assembly
- Low internal resistance
- Monopolar plates with selected flowfields design
- Gold plated current collectors
- Anodized aluminum or stainless steel compression plates with guiding pins
- Integrated heating cartridges
- Type-k thermocouple
- Voltage sense pins
- Gaskets and insulating material
- Gas connectors
- Set of nuts, rods, washers
| Available sizes (active area) | 5, 25, 50, 100cm² |
| Operating pressure | 0-3barg |
| Reactants | H2, MeOH, KOH, reformate… O2, air |
| Operating temperature | 180°C max |
| Monopolar plates | Fuel cell grade composite graphite 5mm thickness |
