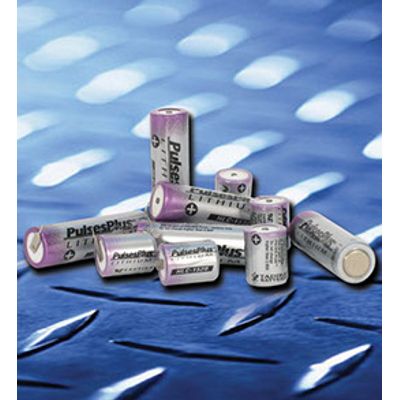

Model TLP-96311/A/ST -PulsesPlus Batteries

SHARE

Technical Data: Capacity to 3.0V (@250mA @1% duty cycle) 1.2 Ah, Nominal voltage 3.6 V, Maximum 1 second pulse to 3.0V 1 A, Maximum pulse length @125mA to 2.8V 1000 sec, Delay time to 3.0V @125mA No Delay, Weight 30 gr, Operating temperature range -40ºC to +85ºC, Capacity retention after 10 years 83%

Most popular related searches
battery design
hybrid capacitor

The battery is designed specifically for applications requiring low background currents combined with high current pulses. The Pulses Plus™ battery combines the inherent benefits of bobbin type Lithium Thionyl Chloride cell with a novel hermetically sealed Hybrid Layer Capacitor (HLC). The addition of the HLC enhances the performance of the Lithium Thionyl Chloride cell to meet large pulse current requirements, thus providing greater performance and safety in comparison to jellyroll construction (spirally wound) type batteries.
