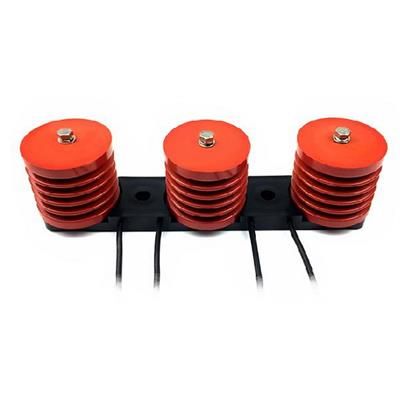

Model TR-EVT11-10 -Electronic Voltage Sensor

Suitable for 10kV column vacuum circuit breakers, load switches or ring network cabinet. TR-EVT11-10-type electronic voltage sensor using the principle of resistor divider, epoxy vacuum casting; TR-ECT01-10-type electronic current sensor using LPCT low-power coil principle; electronic voltage or current sensor output as a standard Small signal, without secondary conversion, can be directly input through the A / D conversion secondary equipment.
