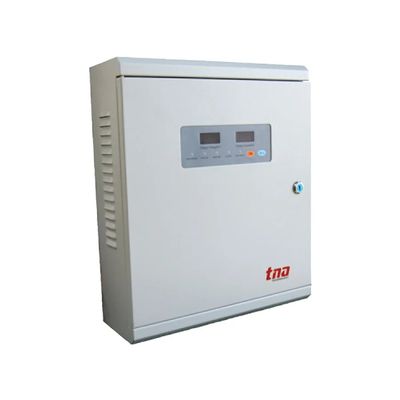

Model TX24-5A -Intelligent Power Supply Unit
EN54-4 Compliance, Intelligent 5A Power supply unit, Can sit on the loop to monitor by the Fire control panel, Digital display showing output voltage and load current, Overload, overcharge and over usage protection, Fully Monitored with Self-test function, Wall mount
Compliance : EN54-4
Power Rating
Power Supply : Mains: AC220V(110-240V),50/60Hz, <130W
Backup : 24VDC/12Ah sealed lead-acid battery (Not included)
Output Power : 120W (24VDC/5A)
PSU
Protocol/Addressing : T&A, Value range from 1 to 254
Mains and backup switching time : No delay.
Indicator : Numerical Display
Material / Colour : Flat sheet Metal / Light Gray
Dimension : 400mm x 320mm x 120mm
IP Grade : IP30
Operating Environment
Temperature : -10?~+60?
Relative Humidity : ≤95%, non-condensing
Atmosphere : 86~106KPa
