- Model VDX104 and VDX104+ - CPU Modules
Model VDX104 and VDX104+ -CPU Modules

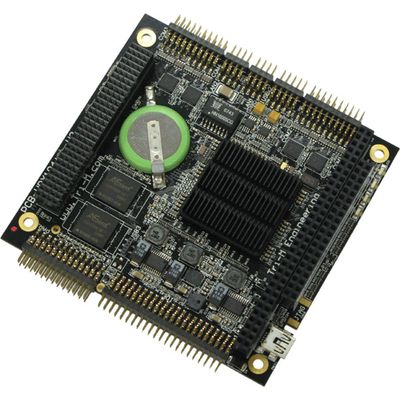

800MHz Vortex86DX PC104-Plus Module with Dual LAN. The VDX104+ is a rugged PC104-Plus compliant system controller measuring just 3.55 inches by 3.775 inches. With an 800 MHz processor, the VDX104+ offers the quickest route of integrating a full x86 AT-compatible computer into your embedded control application using the PC/104+ form factor. In addition, the built-in peripherals such as dual ethernet minimize the number of additional modules required. By combining the system hardware with extended temperature operation and onboard soldered 512 MB SDRAM, I/O, software (integrated OS image) and solid-state mass storage, the VDX104+ lowers your exposure to possible development risks, costs and significantly reduces your time-to-market. The VDX104+`s full compatibility with the popular PC/104+ embedded expansion bus allows you to easily integrate the widest selection of low-cost hardware peripherals. The numerous features provide an ideal price/performance solution.
- Full x86 AT-compatible computer
- Low power
- Extended temperature operation
- Rugged design
- PC104-Plus compliant
System
- CPU DM&P SoC CPU Vortex86DX-800MHz
- BIOS AMI BIOS
- Cache 16K I-Cache, 16K D-Cache
- System Chipset Vortex86DX
- I/O Chipset Vortex86DX
- Ethernet Chipset Vortex86DX
SMSC USB controller LAN9500A - Ethernet Interface 2x 10/100Base-T
- Expansion PC/104plus standard compliant
- Speaker Out Onboard speaker
- Real Time Clock RTC with lithium battery backup
- Watchdog Timer Yes
Interface
- Serial Port 4x 16550-compatible serial ports, RS-232
- LAN Port 2x 10/100 Ethernet
- EIDE 2x EIDE (Ultra DMA 100)
- Parallel Port 1x bi-directional AT-compatible printer port
- USB Port 2x USB 2.0
- K/B & Mouse PS/2
- GPIO 1x 8-bit GPIO port
- Redundancy 1x Redundancy port
- SPI 1x External SPI port
Memory & Storage
- Memory Onboard 512MB DDR2 RAM
- Storage 8MB onboard SPI flash (floppy emulation), Type I CompactFlash™ socket, microSD socket
Software Support
- Operating System (O/S) AMI PC BIOS - 100% x86 compatible, DOS, MSDOS, DRDOS, LINUX, Windows™CE
Electrical Specifications
- Power Input Single 5V DC operation
- Power Consumption 2.5 watt, (+5V@500mA)
Environment & Mechanical
- Operating Temperature -40° to 85°C
- Storage Temperature -50° to 125°C
- Relative Humidity 5 to 90% @ 40ºC, relative humidity, non-condensing
- Dimension (LxWxH) 3.55” x 3.775” x 0.9”
- Weight 53g (incl. battery)
Warranty
- 1 year limited warranty
