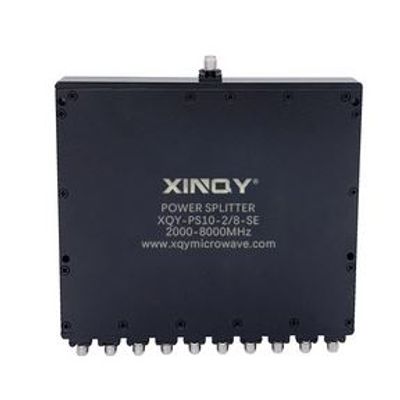

Model XQY-PS10-2/8-SE -2-8GHz 10 Way SMA Power Divider/Combiner
XINQY Enterprise carries a wide selection of power dividers to fit your needs. These components are essential in many systems,allowing the combination of multiple signals or splitting of a single signal into multiple signals with equal magnitude and phase.
- Model: XQY-PS10-2/8-SE
- 10-Way / SMA-Female
- 50 / 2-8GHz
- Customizable Specifications
XINQY Enterprise’s Microstrip Power Dividers/Combiners come with excellent performance featuring low insertion loss,low vswr,high isolation and excellent amplitude and phase balance.They are available in both narrow and broad bandwidths with a variety of connector types such as N-Type, SMA,and 2.92mm. Please see Parameters tables for details!
For any enquiries or any customization,please send email to hansen.hou@xqy-tech.com and we will reply to you as soon as possible.
- 10-Way SMA Power Divider
- 2000-8000 MHz Frequency Range
- Insertion Loss £l.6dB
- Isolation: Typ.25dB
- Combined port VSWR: Typ. 1 28
- Distribution port VSWR: Typ. 1.18
- Radar
- Satcom
- Aerospace/Aviation
- Test and Measurement
- Military Applications
- Wireless Communications
Electrical Specifications
- Frequency Range: 2000-8000 MHz
- Insertion Loss: ≤ 1.6 dB (Excluding theoretical loss 10.2 dB)
- Combined port VSWR: Typ.1.28 / Max.1.50
- Distribution port VSWR: Typ.1.18 / Max.1.30
- Isolation: Typ.25dB / Min.18dB
- Amplitude Balance: ≤ 0.8dB
- Phase Balance: ±8°
- Impedance: 50 Ohms
- Port Connectors: SMA-Female
- Power Rating: Splitter 20W; Combiner 1W
- Operation Temperature: -45? ~ +85?
- Surface Finishing: Black Paint
- Outline Dimensions: 108*134*10 (mm)
- Weight 350 (g)
